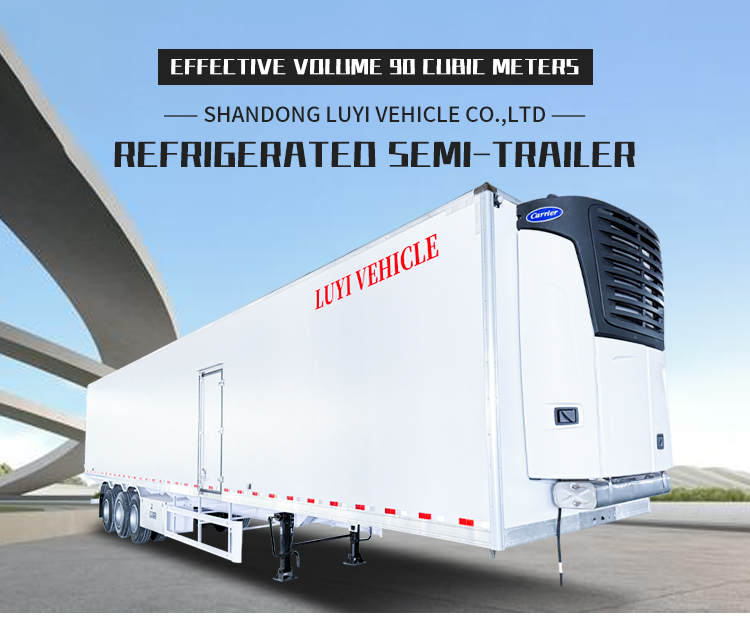

LUYI 14.5m 3-Axle Refrigerated Trailer for Frozen Food Transport

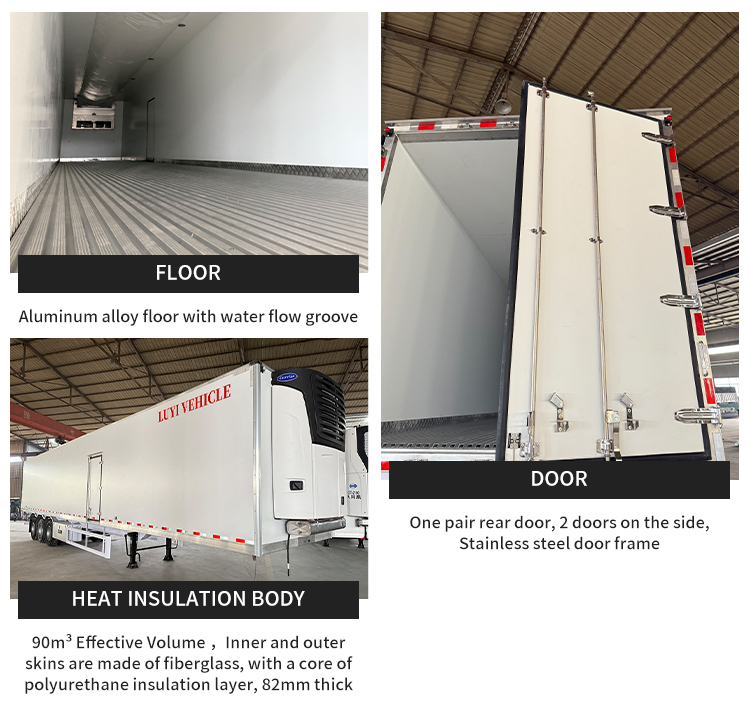

This 14.5m 3-axle refrigerated semi-trailer offers precise temperature control from -30℃ to +5℃, suitable for transporting meat, seafood, and other frozen goods. With a 90m³ effective volume, it is equipped with a Carrier Transicold X4 7300 refrigeration unit for stable cooling. The trailer features an 82mm polyurethane insulation layer, aluminum alloy floor with water flow grooves, and stainless steel door frames for durability. Available with mechanical or air suspension, it ensures reliable cold chain logistics.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):7(days),2-5(units):10(days),6-10(units):15(days),>10(units):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1 sets),Customized colour (Min. Order: 1 sets),Customized Logo (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Function
Transport
Suspension
Mechanical Suspension Air Suspension
Brake System
Dual Line Braking System
Color
Customers Optional
Axle
3 Axle
Tire
11.00r20 12r22.5 315 385
Product name
Refrigerated Semi Trailer
Place of Origin
Shandong, China
Max Payload
>30000 kg
Size
14500x2500x4000mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Axle Brand
13TON Axle FUWA Brand
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
Standard 28Ton

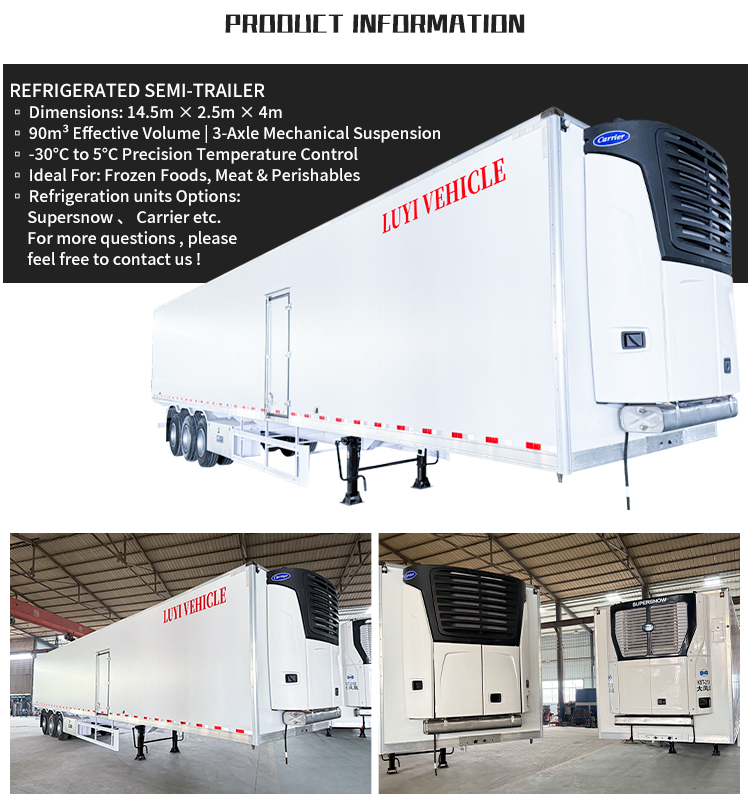

LUYI Group 45ft Refrigerated Semi-Trailer | 90 Cubic Meters Capacity | 3-Axle Configuration | Temperature Range: -30°C to +5°C
Tare Weight | 8.8 tons (final configuration dependent) |
Payload Capacity | 30 tons (adjustable) |
External Dimensions | 13,600×2,600×4,000 mm (customizable) |
Internal Dimensions | 13,280×2,440×2,547 mm (customizable) |
Main Beams | Q345B/T700 Steel |
Beam Height | 500 mm |
Top Plate | 14 mm thickness |
Bottom Plate | 16 mm thickness |
Middle Plate | 8 mm (customizable) |
Side Beams | 12 mm channel steel (Q235B material) |

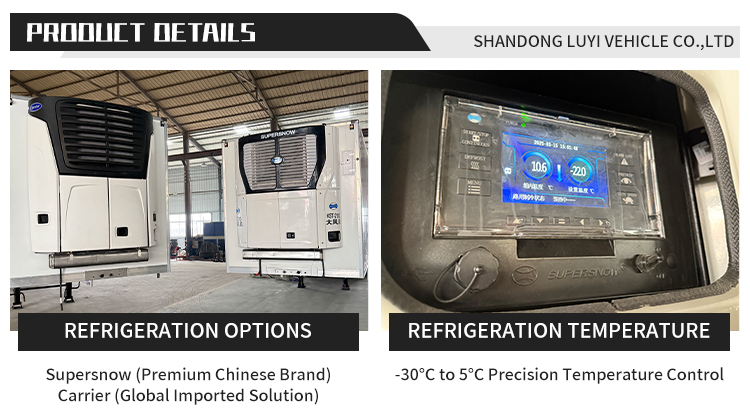

Refrigeration Unit | Carrier Transicold X4 7300 |
Tank Thickness | 5/7 mm (customizable) |
Axles | 2/3/4 axles (optional) |
Suspension | Mechanical / Air Suspension (US/German) |
Leaf Springs | 10-layer, 13×90 mm |
Landing Gear | 28-ton heavy duty |
Tire Specification | 12R22.5 / 315/80R22.5 / 11R20 / 12R20 |
2. Factory visiting, third party inspection etc.
3. We will reply for your inquiry in 12 hours.
4. Perfect and economic transportation arrangement.
5. Providing high quality and reliability products, free of charge during the warranty period for spare parts
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine,tank automatic welding turning machine,whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
FAQ
1. Who are we?
We are a group company; we have two semi-trailer factories , one trading company in china . We are focus on semi-trailer, trucks and parts.
2.Why choose us
(1) We have more than 20years experience in the trailer manufacturing. Our brand”LUYI” , had got high reputation in china
andoverseas countries.
(2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
(3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2018
(4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
We are a group company; we have two semi-trailer factories , one trading company in china . We are focus on semi-trailer, trucks and parts.
2.Why choose us
(1) We have more than 20years experience in the trailer manufacturing. Our brand”LUYI” , had got high reputation in china
andoverseas countries.
(2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
(3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2018
(4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
3.What’s your MOQ?
One unit trailer.We suggest two trailers one time to save the freight.
4.Can you satisfy my special requirement? Definitely! We can discuss the practicable plan and produce it as your request.
5.What’s your warranty?
All of LUYI trailers are produced strictly with ISO standard, If you need to change the trailer parts, we can take the genuine
parts in our factory store for you.
One unit trailer.We suggest two trailers one time to save the freight.
4.Can you satisfy my special requirement? Definitely! We can discuss the practicable plan and produce it as your request.
5.What’s your warranty?
All of LUYI trailers are produced strictly with ISO standard, If you need to change the trailer parts, we can take the genuine
parts in our factory store for you.
