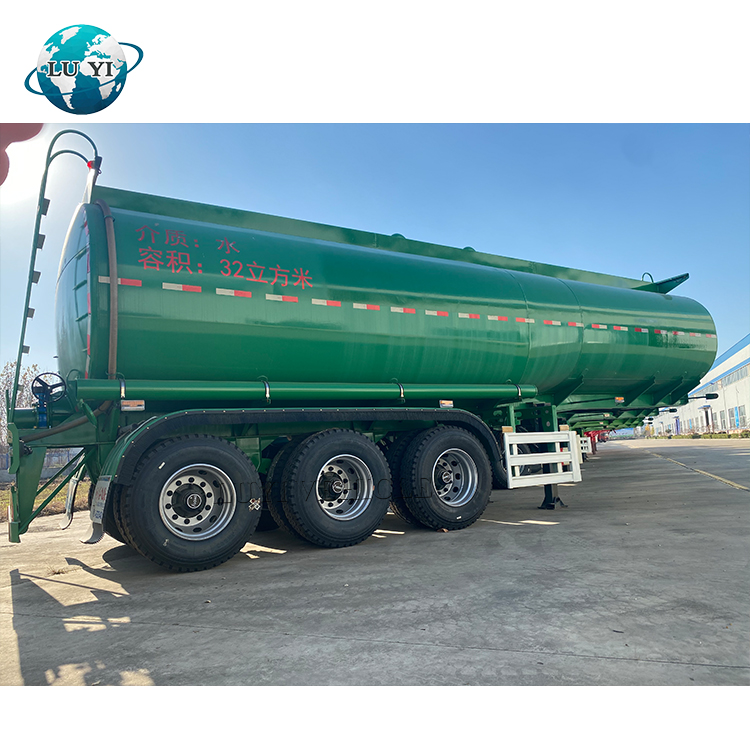

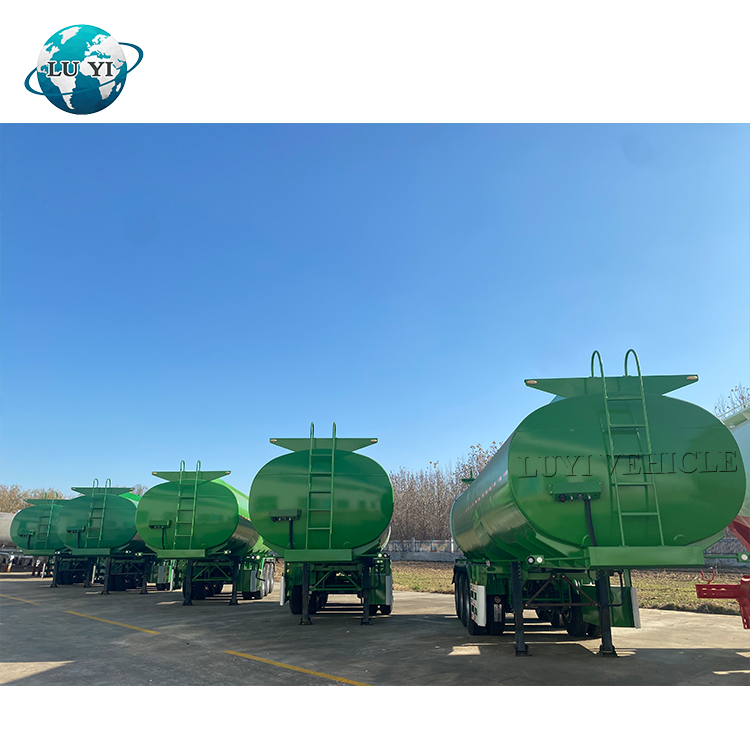

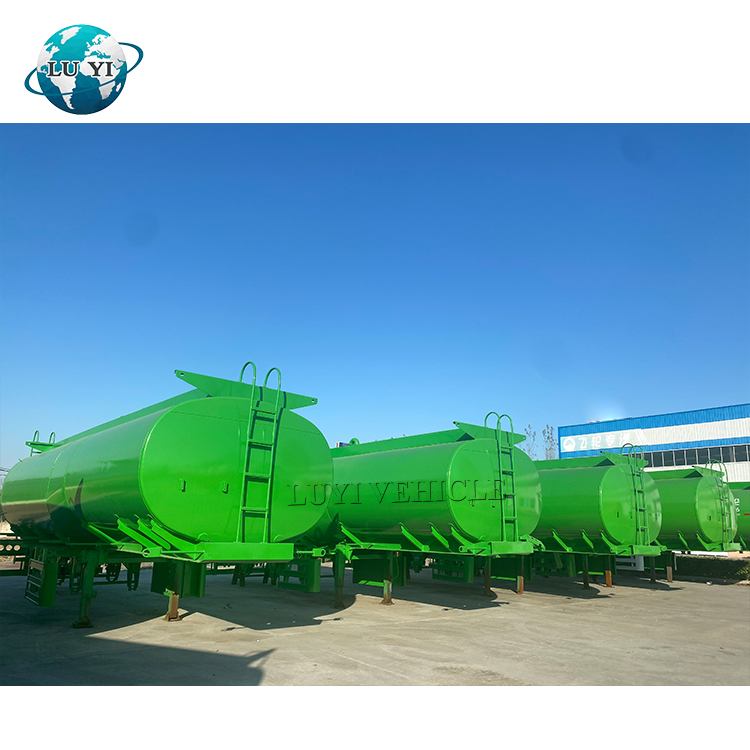

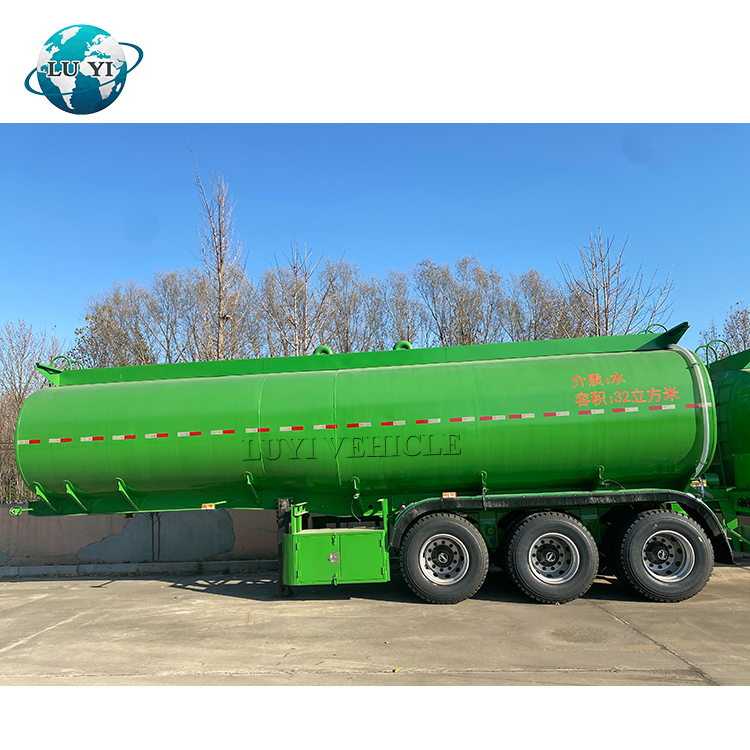

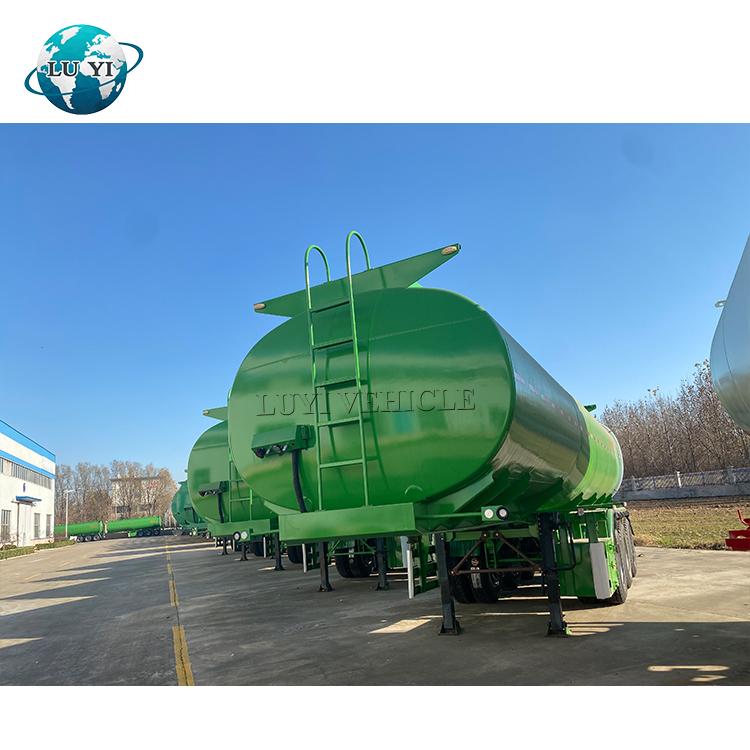

3-Axle Carbon Steel Fuel Tanker Trailer 20-50KL Capacity
3-axle carbon steel fuel tanker with 20-50KL volume (45m³ optional), built with Q235B/Q345B steel (5-6mm thickness). Dimensions: 11000-13000×2490×3800-3950mm. Equipped with JOST 2"/3.5" king pin, 12R22.5 tires, and 13T/16T FUWA/BPW axles. Mechanical/air suspension, double-line air brakes, and 28T JOST landing gear ensure stability. Sandblasted chassis with 2 anti-corrosive primers and polyurethane paint. Customizable with 1-7 compartments, emergency valves, and fire extinguishers. Factory-direct, exported to 80+ countries, 12-month parts warranty.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):7(days),2-5(units):10(days),6-10(units):15(days),>10(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Tank body
Thickness is 5mm or 6mm
Suspension
Mechanical Suspension or Air suspenison
Brake System
Double Line Air Brakes
Tire
11.00r20 12r22.5 12.00R20
Product name
fuel tank trailer
Place of Origin
Shandong, China
Max Payload
45000L
Size
11000mm-13000mmX2490mmX3950mm/3800mm-3900mm
Material
carbon steel
Type
Semi-Trailer
Use
Truck Trailer
AXle No.&Brand
3 Axle FUWA/BPW Brand
Compartment
1 to 7 compartments
Leaf Spring
90mm(W)*13mm(T)*10 Layer
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
JOST Brand /Holland/FUWA
Product Description
LUYI High quality 3 axle oil fuel tank semi trailer adopt advanced design concept. We also can produce the tanker trailers for different liquid like fuel, petrol, water, palm oil etc. To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens. LUYI Fuel tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc. The following specifications for your reference.
Product Details
Name | Fuel tanker semi trailer | |
Trailer Model | Round Shape or Ellipse | |
Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm | |
Tare weight | About 8-12.8T | |
Total Volume | 45m³(optional) | |
Material | Q235B/Q345B carbon steel | |
Tanker Body Material | 1. 6mm/5mm Q235B/Q345B carbon steel | |
Axles | 13T/16T, FUWA/BPW/HuaJing brand | |
Axle Number | 2/3/4/ Axle or multi axle | |
Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . | |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) | |
King Pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | |
Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) | |
Rear ladder | Dismountable or foldaway | |
Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm | |
Spring leaf | 8/10/12/16 pieces | |
Manhole Cover | 2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards | |
Brake Chamber | 6 double brake chamber | |
Electrical System | 24V, 7core socket, lights according to European standards | |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher | |
Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) | |
Discharge mouth | diameter is 280mm | |
Receptacle | 7ways (7wire harness) | |
The Above Information is Standard Spec.If you want get more specific Spec.Please send inquity to us. | ||
If you would like to know more detailed information about the product, please feel free to contact us for consultation at any time. Our professional team will serve you wholeheartedly.
1. OEM order accepted: Customer’s brand, Color etc.
2. Factory visiting, third party inspection etc.
3. We will reply for your inquiry in 12 hours.
4. Perfect and economic transportation arrangement.
2. Factory visiting, third party inspection etc.
3. We will reply for your inquiry in 12 hours.
4. Perfect and economic transportation arrangement.
5. Providing high quality and reliability products, free of charge during the warranty period for spare parts
Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine,tank automatic welding turning machine,whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine,tank automatic welding turning machine,whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
FAQ
1. Who are we?
We are a group company; we have two semi-trailer factories , one trading company in china . We are focus on semi-trailer, trucks and parts.
2.Why choose us
(1) We have more than 20years experience in the trailer manufacturing. Our brand”LUYI” , had got high reputation in china
andoverseas countries.
(2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
(3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2018
(4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
We are a group company; we have two semi-trailer factories , one trading company in china . We are focus on semi-trailer, trucks and parts.
2.Why choose us
(1) We have more than 20years experience in the trailer manufacturing. Our brand”LUYI” , had got high reputation in china
andoverseas countries.
(2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
(3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2018
(4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
3.What’s your MOQ?
One unit trailer.We suggest two trailers one time to save the freight.
4.Can you satisfy my special requirement? Definitely! We can discuss the practicable plan and produce it as your request.
5.What’s your warranty?
All of LUYI trailers are produced strictly with ISO standard, If you need to change the trailer parts, we can take the genuine parts in our factory store for you.
One unit trailer.We suggest two trailers one time to save the freight.
4.Can you satisfy my special requirement? Definitely! We can discuss the practicable plan and produce it as your request.
5.What’s your warranty?
All of LUYI trailers are produced strictly with ISO standard, If you need to change the trailer parts, we can take the genuine parts in our factory store for you.
