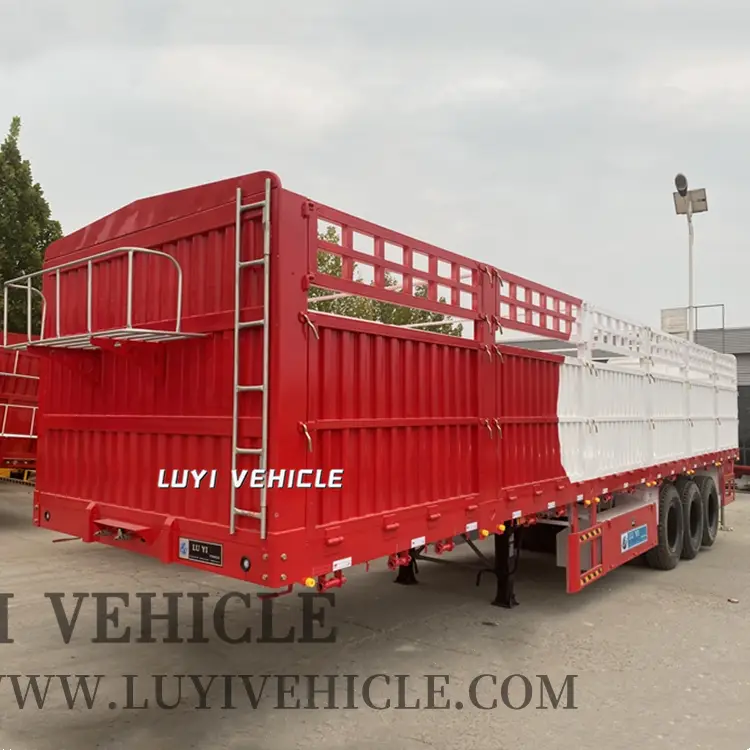

3 Axle Heavy Duty Transport Cargo Fence Trailer
The 3 Axle High Side Fence Cargo Semi Trailer is engineered for demanding transport applications, offering a combination of strength and versatility. Its high side fence design prevents cargo spillage while maintaining accessibility, and the flatbed structure accommodates a wide range of loads. The triple-axle configuration enhances load capacity and compliance with road regulations, ensuring smooth and stable transport over long distances. Constructed from high-grade steel and advanced welding techniques, this trailer is built to withstand harsh conditions while requiring minimal maintenance. A top choice for businesses needing a dependable heavy-haul solution.
5.0
shipping:
Ocean freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):10(days),2-10(units):25(days),>10(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI VEHICLE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brake System
WABCO dual line brake system
Color
Customer Request
Axle
13T Fuwa /BPW/LUYI Brand
Tire
12R22.5/12R24/12R20
Place of Origin
Shandong, China
Max Payload
60T
Size
13000*2500*3500mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Keywords
fence semi trailer
Certification
ISO CCC
Landing Gear
standard 28T two speed
LUYI Fence semi trailers are favored by foreign customers mainly for their high-quality steel Q345.In addition, the accessories and configurations of the trailer are adopted by well-known international and Chinese brands, which not only extends the service life of the trailer, but also improves the operation efficiency and saves the maintenance cost. Fence semi trailer railing semi - trailer adopts railing structure design. We have 2/3/4 shafts with a load of 30/40/60/80/100 tons for your choice.Customizable color and side wall height.
Product Description
Feature
* Used for finite element analysis of automobiles to improve product performance. * The whole body electrophoresis coating, resistance, coating effect can reach more than 10 years. * High-strength full-thickness steel with a titanium content of 0.98 ‰, which can ensure the toughness and strength of beams and frames. * 42 sturdy rib designs ensure the safety and carrying capacity of the trailer.
-Light tare weight: The convex and concave straight beam structure is used to reduce the weight of multiple positions under the tare weight The premise of ensuring structural strength, light tare. -Strong load capacity: by using high-strength steel and structural innovation, it can maintain the same load capacity while Reduce tare weight. It is unique in reducing oil consumption and tire wear.
1. High quality steel makes the trailer itself lighter, but also strong enough to carry heavier loads, so that transport companies can carry more tons.
2. Skilled workers make the flatbed trailer welded more frequently and firmly.
3. 2 spare tire rack, water tank, oil tank, etc., are optional accessories for modern transportation.
4. We have a standard side wall semi-trailer, 3 axles, 50 ton load, side wall 600mm high. At the same time, we can also customize a variety of recreational vehicles for you.
Manufacturing Technique
|
Side Wall Semi Trailer-3 Axles
Brand: LUYI VEHICLE Application: Coal/Cargo/Containers Loading Axle: LUYI VEHICLE/FUWA/BPW/other Loading Capacity: 30T-80T L*W: 13000mm*2500mm Sidewall Height: 600mm-1700mm OEM/ODM: Yes SKD/CKD Cooperation: Available Goose Type: Optional Doors Opening Type: Multi choices |
Side Wall Semi Trailer-4 Axles
Brand: LUYI VEHICLE Application: Coal/Cargo/Containers Loading Axle: LUYI VEHICLE/FUWA/BPW/other Loading Capacity: 40T-100T L*W: 13000mm*2500mm Sidewall Height: 600mm-1700mm OEM/ODM: Yes SKD/CKD Cooperation: Optional Goose Type: Optional Doors Opening Type: Multi choices |
|
Side wall Semi Trailer-3 Axles
|
Side wall Semi Trailer-4 Axles
|
|
Main Beam
|
Main Beam
|
|
Main Beam Material:Q345/T700
|
Main Beam Material:Q345/T700
|
|
Upper Plate Thickness:16mm
|
Upper Plate Thickness:18mm
|
|
Middle Plate Thickness:10mm
|
Middle Plate Thickness:12mm
|
|
Lower Plate Thickness:18mm
|
Lower Plate Thickness:20mm
|
|
Height:500mm
|
Height:500mm
|
|
Side Wall Height:600mm-1700mm
|
Side Wall Height:600mm-1700mm
|
|
Product Size
|
Product Size
|
|
L:13000mm*W:2550mm
|
L:13000mm*W:2550mm
|
|
Axles
|
Axles
|
|
3 Axles *13/16 Ton LUYI VEHICLE/FUWA/BPW/Other
|
4 Axles *13/16 Ton LUYI VEHICLE/FUWA/BPW/Other
|
|
Tire
|
Tire
|
|
12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
|
12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
|
|
Rim
|
Rim
|
|
9.0*22.5 (12 Pieces) Steel/Aluminum
|
9.00*22.5 (16 Pieces) Steel/Aluminum
|
|
Leaf Spring
|
Leaf Spring
|
|
90mm*13mm*10/90mm*16mm*10
|
90mm*13mm*10/90mm*16mm*10
|
|
Kin Pin
|
Kin Pin
|
|
50#(2")/90#(3.5") JOST/Other Brand
|
50#(2")/90#(3.5") JOST/Other Brand
|
|
Landing Gear
|
Landing Gear
|
|
28 Tons Two Speed,JOST/Other Brand
|
28 Tons Two Speed,JOST/Other Brand
|
|
Vehicle Painting
|
Vehicle Painting
|
|
Electrophoresis paint
|
Electrophoresis paint
|
