Luyi Vehicle-Custom Semi Trailers & Truck Manufacturer Since 2019.

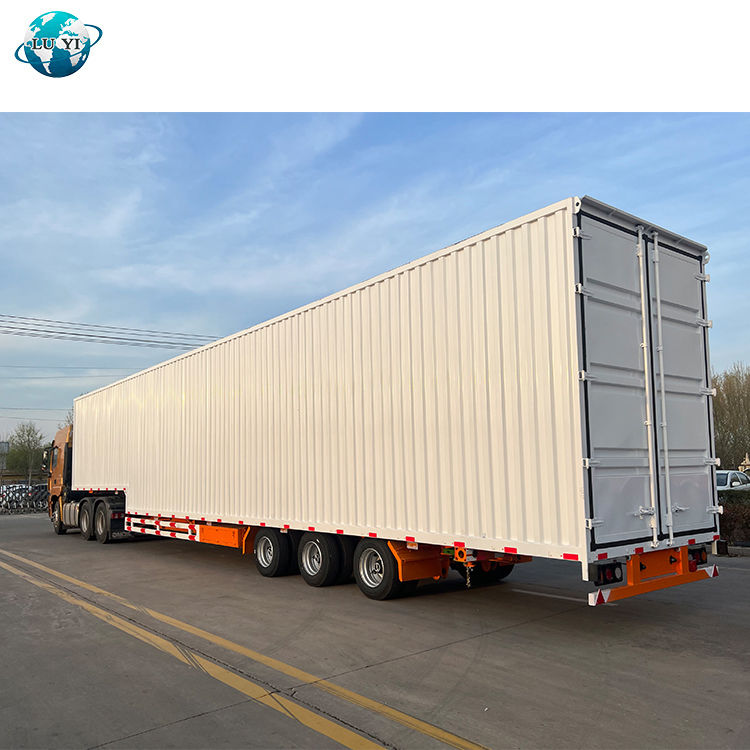

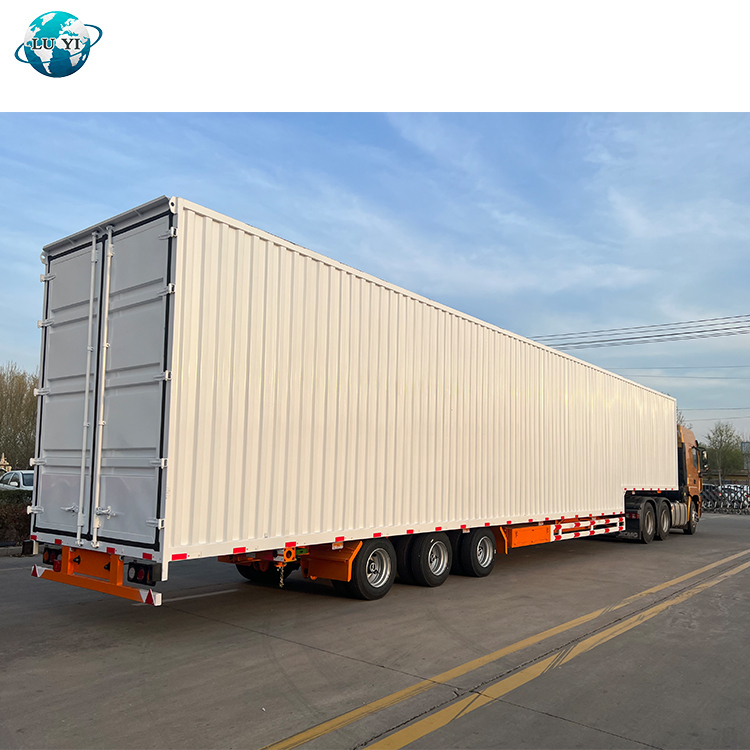

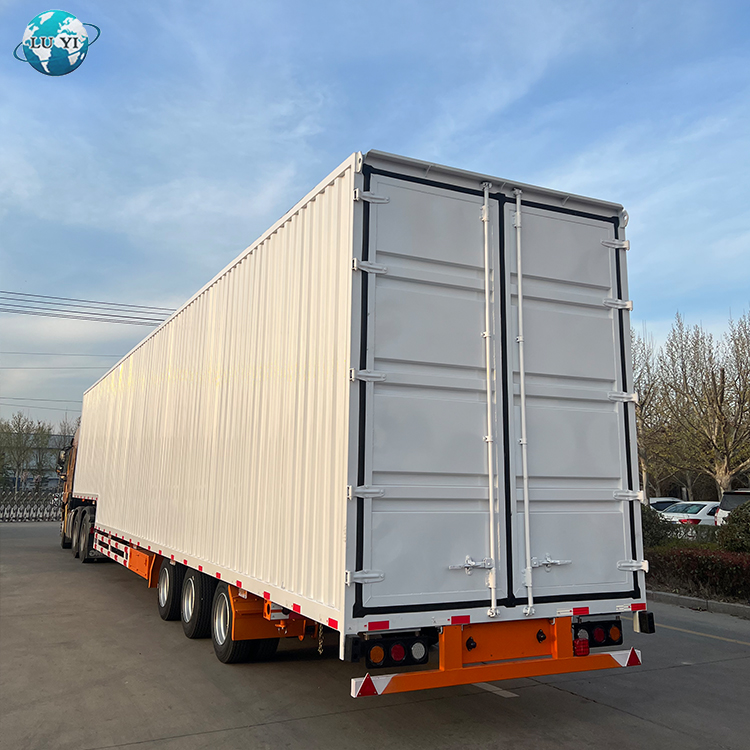

3 Axles Box Structure Curtain Side Semi Trailer/cargo Box Van Semi Trailer
Engineered by Shandong Luyi Vehicle Co., Ltd., this 3-axle curtain side semi-trailer combines a robust box structure with flexible cargo access, supporting up to 60 tons of payload.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(sets):15(days),2-10(sets):35(days),>10(sets):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
Luyi brand
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Function
Cargo Transport
Suspension
Heavy Duty Mechanical Suspension
Axle
13/16 Ton Fuwa/BPW/CIMC
Tire
11.00R20 /12R22.5 /315/80R22.5
Product name
Van Trailer
Place of Origin
Shandong, China
Max Payload
60 tonnes
Size
14600X2550X3950 (mm)
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Rims
6.5-20/7.5-20/8.00-20/8.5-20
Certification
ISO CCC GCC CE
OE NO.
LJRH1338MJ3628692
King pin
JOST 2.0 Inch (50mm)/3.5 Inch (90mm)
Landing Gear
Heavy Duty Landing Gear
shandong luyi cargo van trailer 3 Axles 40ft Van Box Semi Trailer with side open door
Products Description
2 Axles Van Semi Trailer | 3 Axles Van Semi Trailer | 4 Axles Van Semi Trailer | ||
Brand:LUYI | ||||
Application:Food/Cargo Loading | ||||
Loading Capacity:20-50 Tons | Loading Capacity:30-60 Tons | Loading Capacity:60-100 Tons | ||
L*W*H:13000mm*2550mm*2400mm | ||||
Door Position:Multi-Choice | ||||
Door opening style:Multi-Choice | ||||
Box Plate Thickness:0.9mm | ||||
OEM/ODM:Available | ||||
Tandem Style:Available | ||||
SKD/CKD Cooperation:Available | ||||
Main Beam Material: Q345/T700 | ||||
Height: 500mm | Height: 500mm | Height: 500mm | ||
Upper Plate: 12mm | Upper Plate: 14mm | Upper Plate: 16mm | ||
Middle Plate: 6mm | Middle Plate: 8mm | Middle Plate: 10mm | ||
Lower Plate: 14mm | Lower Plate: 16mm | Lower Plate: 18mm | ||
Axles:2*13T/16T FUWA/BPW | Axles:3*13T/16T FUWA/BPW | Axles:4*13T/16T FUWA/BPW | ||
Tire:11.00R20/12R22.5*8 pieces, Linglong/Triangle/Double-Coin/Bridgestone | Tire:11.00R20/12R22.5*12 pieces, Linglong/Triangle/Double-Coin/Bridgestone | Tire:11.00R20/12R22.5*16 pieces, Linglong/Triangle/Double-Coin/Bridgestone | ||
Rim:9.0/8.0*8 pieces, steel/aluminum | Rim:9.0/8.0*12 pieces, steel/aluminum | Rim:9.0/8.0*16 pieces, steel/aluminum | ||
Suspension:Mechanical/ Air | Suspension:Mechanical/ Air | Suspension:Mechanical/ Air | ||
Leaf Spring:90mm*13/16mm*10 pieces | Leaf Spring:90mm*13/16mm*10 pieces | Leaf Spring:90mm*13/16mm*10 pieces | ||
Landing Gear:Jost 28T two-speed | Landing Gear:Jost 28T two-speed | Landing Gear:Jost 28T two-speed | ||
King Pin:Jost 2''(50#)/3.5''(90#) changeable | King Pin:Jost 2''(50#)/3.5''(90#) changeable | King Pin:Jost 2''(50#)/3.5''(90#) changeable | ||
Tool Box:steel/aluminum | Tool Box:steel/aluminum | Tool Box:steel/aluminum | ||
Above Information are LUYI Standard Spec.If customer want to change Spec.Please Let us know. | ||||
Product Display
Details Images
Recommend Products
Company Profile
Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc.

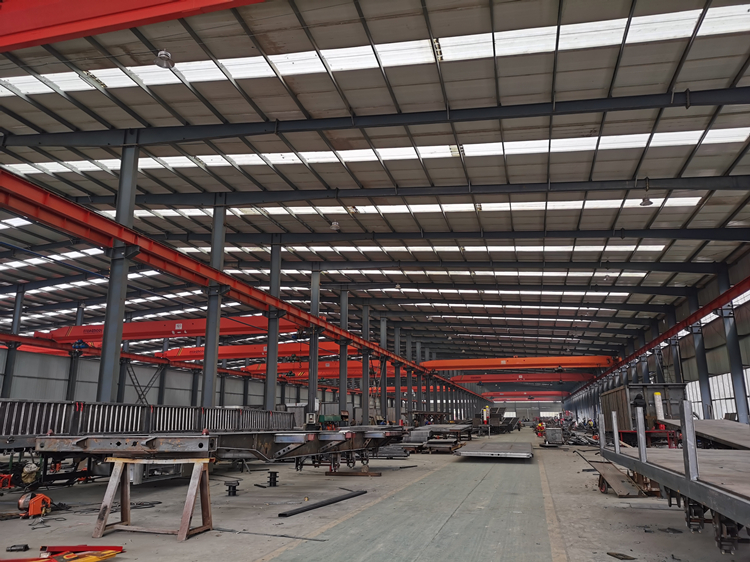

Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.

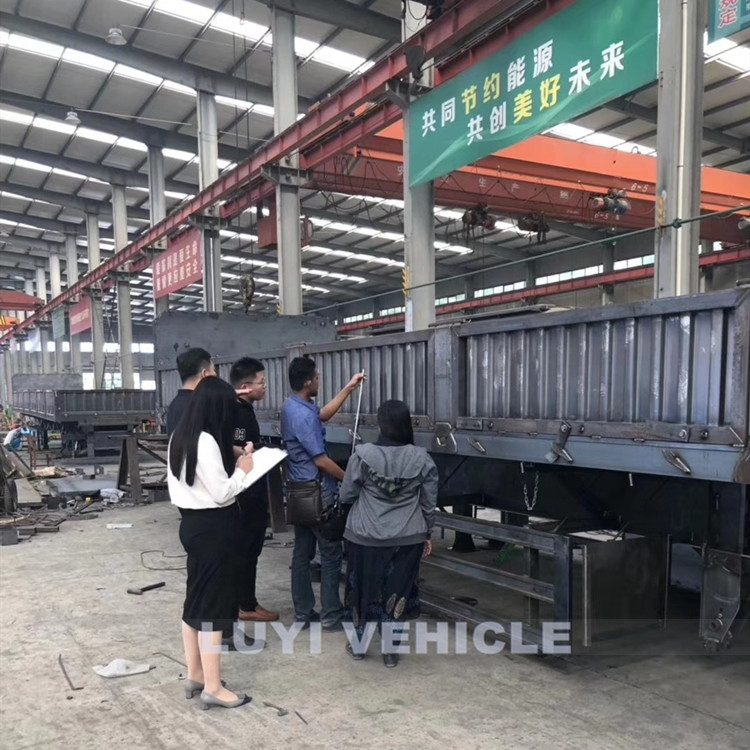

Customer Photos
Luyi Vehicle has served more than 80 countries.
ncluding Germany, Australia, Africa, southeast Asia, the Middle East, South Africa, South America, etc., and has established 78 service points in 50 major market countries
Why Choose Us
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.Just trust us, you will get a satisfactory answer.
6.We also provide rational packing and shipping program , let shipment save money and security.
