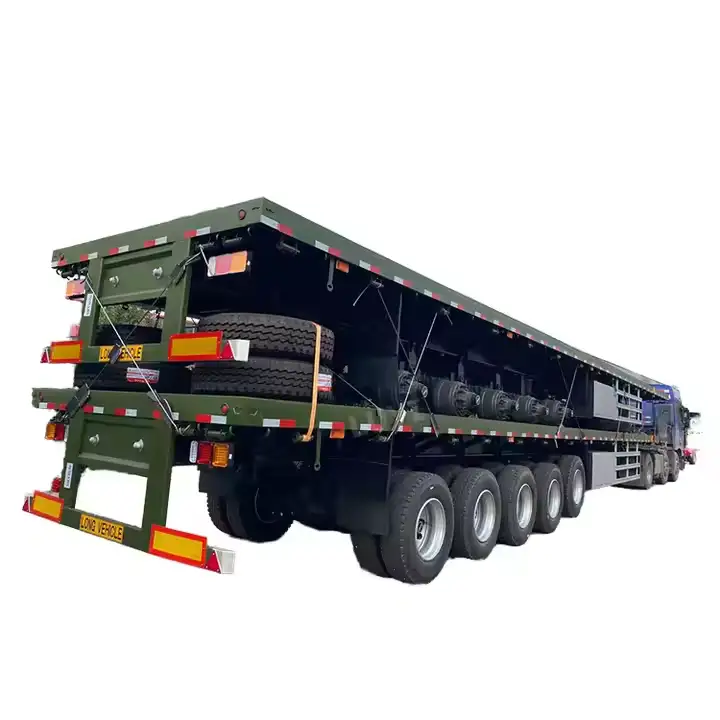

5-Axle Adjustable Flatbed Trailer 50ft 120T Heavy Transport
Engineered for superior performance, this 5-axle flatbed semi-trailer combines exceptional load capacity with versatile 40ft-53ft multi-length container hauling capabilities. Equipped with heavy-duty twist locks for secure container transport, it's built to handle the most demanding logistics challenges.
Key Advantages:
✔ 5-Axle Stability - Enhanced weight distribution & road safety
✔ Extended Length Range - Accommodates 40ft to 53ft containers
✔ Industrial-Grade Twist Locks - Guaranteed cargo security
✔ High Load-Bearing Design - Optimized for heavy industrial shipments
✔ Reinforced Steel Construction - Maximum durability & longevity
Ideal For:
-
Oversized container logistics
-
Heavy equipment transportation
-
Industrial machinery relocation
-
Cross-border freight operations
Built for Power. Designed for Efficiency.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):10(days),2-10(units):20(days),>10(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI VEHICLE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Function
transport container cargo goods
Suspension
Mechanical Suspension
Brake System
Dual Line Braking System
Color
Customers Optional
Axle
13/16 Ton Fuwa/BPW
Tire
11.00r20 12r22.5 315 385
Product name
flatbed semi trailler
Place of Origin
Shandong, China
Max Payload
60-120T
Size
12500*2500*1600mm
Material
steel
Type
Semi-Trailer
Use
Truck Trailer
Keywords
Low Flatbed Container Semi Trailer
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
JOST Brand Two-speed
The semi-trailer of flat container is used for transporting all kinds of containers. It can also be used for transporting ordinary growing goods on its platform.It is mainly used in transportation systems, such as ships, ports, routes, highways, transfer stations, Bridges, tunnels, multimedia transportation systems, etc.A 40-foot flatbed container trailer can hold 40 feet and two 20-foot containers.Flatbed trailers range in capability from 20 to 80 tons, 2-axis, 3-axis, 4-axis. We use high strength steel to reduce the probability of fracture of the beam.High strength steel Q345B for main beam and BPW or fuwa axles are Customization is widely accepted.
Excellent technology: the main parts of the vehicle are processed by advanced equipment, and the longitudinal operation is welded and formed by CNC plasma cutting and automatic submerged arc welding machine imported from the United States. It has the characteristics of high cutting precision and good welding forming: the assembly machine is used to realize the assembly of wheel and axle, ensuring the accuracy of wheelbase;The vehicle parts are treated with shot peening, which greatly strengthens the adhesion of paint and improves the anti-corrosion performance of structural parts: all the assembly parts are assembled and formed after air injection to ensure the anti-corrosion performance of the whole vehicle.
Frame: The frame is made of high strength steel plate with high quality and low alloy, and the space frame structure is made of welding zigzag longitudinal beam and integral penetrating beam.Reasonable structure, improve the strength, stiffness, radial and other properties of the frame, with light weight, bearing capacity and other characteristics.
Axle: Axle adopts imported or domestic high quality axle products such as BPW, SAF. YORK. KIC. FUWA. CIMC, etc., which have the advantages of large bearing capacity and long service life, etc. At the same time, the ABS system of domestic and foreign famous brands such as Haldex and WABCO can be installed to maximize the stability and safety of the vehicle.
Brake system: adopt safe and reliable double-circuit air pressure brake system, equipped with energy storage sub-pump, select Haldex. WABCO and other imported or domestic famous brand relay valve, to ensure good braking performance.
Toolbox: waterproof, large volume, removable structure toolbox
Mechanical Suspension
12.00R22.5 315/ 80R22.5 11.00R20 12.00R20 (special for export market ) 3 Axles 13T/16T FUWA /BPW
Fuwa Axle 13T/16T
WABCO Dual line Brake System
Flatbed semi trailer features 1.Steel structure: the steel frame adopts top hot rolled or rolled steel plate, automatic welding longitudinal beam, advanced sanding and painting technology for the early treatment. 2.Different types of suspension are designed for various working conditions: bogie suspension;Air suspension;Mechanical suspension. 3.The lamp USES advanced LED lights, high quality PC and cast wire harness dual circuit design. 4.Automatic tire inflation and pressure sensor systems selectively improve safety and better fuel economy. 5.State of the art testing equipment: analysis of metal composition, hardness and phase to ensure the standard of processed materials;Check and correct weld defects, paint thickness and adhesion to ensure the quality of finished products.
|
Product Name
|
Luyi Side Tipper Semi Trailer
|
||
|
Bottom plate thickness
|
3mm -5mm diamond plate /Q235 steel
|
||
|
Lifting System
|
Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.)
|
||
|
Axle
|
13T/16T
|
||
|
Tire
|
12.00R22.5 315/ 80R22.5 11.00R20 12.00R20
|
||
|
Suspension
|
Mechanical suspension Or Air suspension
|
||
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market ) |
||
|
King pin
|
JOST brand 2.0 or 3.5inch bolts type or Welding type
|
||
|
Support Leg
|
JOST brand D200T or China brand 28Tons (Double speed)
|
||
|
Main Beam
|
Material is Q345B steel.
|
||
|
Side Beam
|
16mm or 18mm channel steel (Material is Q235steel).
|
||
|
Brake Chamber
|
T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
|
||
|
ABS
|
optional
|
||
|
Twist Locks
|
Optional;Four ,Eight or Twelve pieces
|
||
|
Valve
|
WABCO valve
|
||
|
Electric system
|
LED light,24V,7ways(7 wire harness)
|
||
|
Tool box
|
One piece, 1m×0.5m×0.5m can be optional
|
||
|
Shipping Terms
|
By bulk cargo carrier, RORO or 40HQ container.
|
||
Other Trailers Recommened
Fence Cargo trailer,Side wall Flatbed Trailer,Container Trailer Etc.
Flatbed Semi Trailer and other trailers packaging
With more than 20 years of experience manufacturing trailers, LUYI has become a modernized enterprise with the integ-ration of R&D, Design, Manufacture and Sales. LUYI has more than 1080 employees and covers an area of 390,000 square meters, total assets of $80 million. We have a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, automatic tank welding machine, shot peening machine, Swiss four-wheel positioning and other production and testing equipment. LUYI has strict control for each process. We have passed the, CE, TUV, ADR standard recognition, LRQA certification, and Sinopec, Petrochina, Shell and Castrol and other professional institutions’ rigorous audits certification.
SHANDONG LUYI VEHICLE Co,.Ltd.
Shandong Luyi Vehicle Co., Ltd. a manufacturing company that produces all kinds of semi-trailers, with an export qualified enterprise of China ministry of commerce. Luyi Vehicle mainly includes Flatbed Container semi-trailer, Low-bed Trailer, Dump/tipper trailers, Skeleton semi-trailer, Sidewall cargo semi-trailer, Modular trailer, Specially custom-ized trailer , Diesel/petroleum/liquid /bulk cement tank trailer, Dump truck, Tractor truck head, and Construction mac-hinery, truck spare parts.
1.Q: What kind of payment do you accept?
A: We accept T/T and L/C at most. If you want to use others payment, contact me for more info.
2.Q: What's your delivery time?
A: It depends on the products. Low bed trailer, Container trailer, skeleton trailer, side wall trailer:10-15 days Fuel tanker
trailer, bulk cement trailer 20 days Special trailer, like detachable gooseneck trailer, hydraulic modular trailer 25 working days .
2.Q: What's your delivery time?
A: It depends on the products. Low bed trailer, Container trailer, skeleton trailer, side wall trailer:10-15 days Fuel tanker
trailer, bulk cement trailer 20 days Special trailer, like detachable gooseneck trailer, hydraulic modular trailer 25 working days .
3.Q: What's warranty time?
A: The ordinary semitrailer is 10 years, and the heavy duty trailer, special trailer and tanker warranty time is 8 years.
A: The ordinary semitrailer is 10 years, and the heavy duty trailer, special trailer and tanker warranty time is 8 years.
4.Q: What's your after-sale service?
A: We provide after-sale service for lifetime, and the supply of spare parts for lifetime.
A: We provide after-sale service for lifetime, and the supply of spare parts for lifetime.
