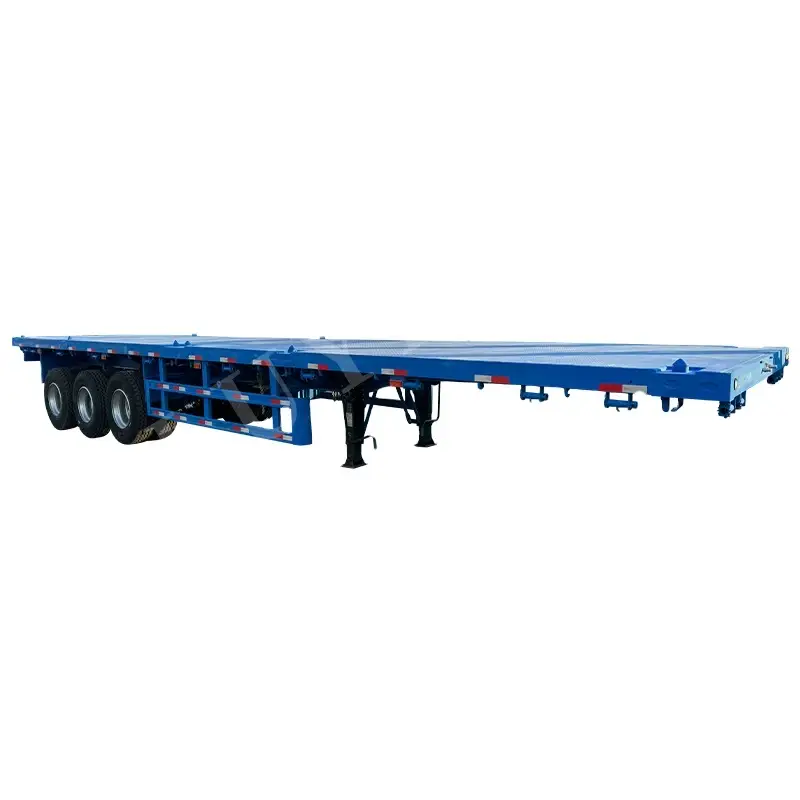

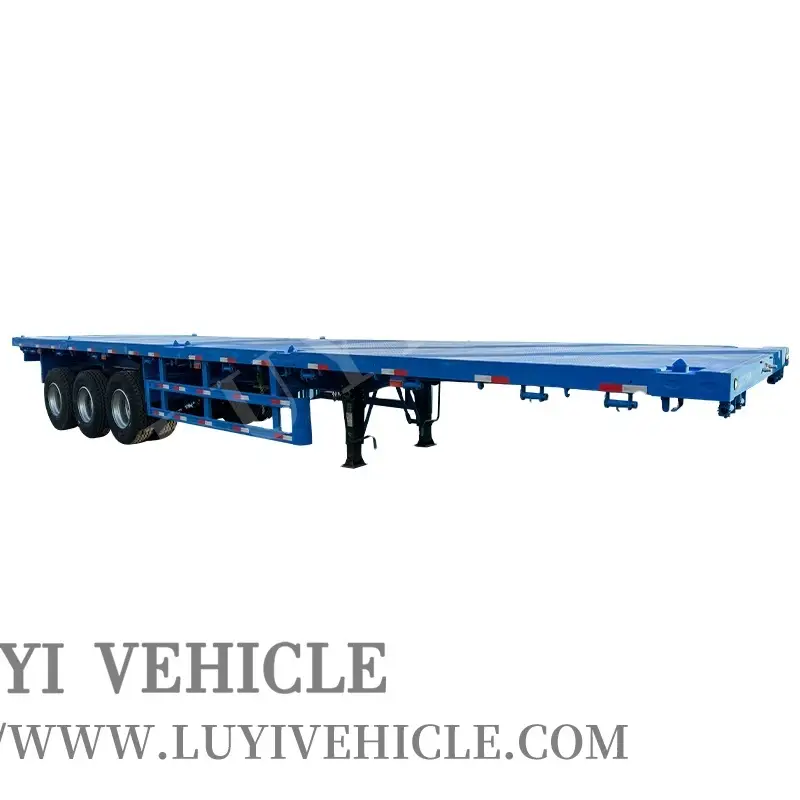

3 Axles 40ft Flatbed Transportation Semi-trailer
The Luyi 3 Axles 40ft 60 Ton Low Flatbed Semi-trailer is engineered to meet the highest standards of heavy cargo transportation. Its key features include:
-
40ft Low Flatbed Design: Ensures easy loading and unloading of tall or bulky cargo.
-
60-Ton Payload Capacity: Ideal for transporting heavy machinery, construction materials, and industrial equipment.
-
3-Axle Configuration: Provides superior weight distribution and road compliance.
-
Reinforced Steel Construction: Enhances durability and longevity in harsh working conditions.
-
Anti-Slip Flooring: Improves cargo stability and safety during transit.
-
Adjustable Kingpin: Offers compatibility with various tractor units.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):10(days),2-10(units):21(days),11-25(units):45(days),>25(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
Luyi
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Condition
Brand-new
Brake System
Dual Line Braking System
Color
Customers Optional
Axle
13T 16P
Tire
11.00R20 /12R20 /315/80R22.5
Product name
40ft flatbed trailer
Place of Origin
Shandong, China
Max Payload
60 ton
Size
12500mm*2500mm*1550mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Load weight
60 ton
Suspension System
Mechanical Spring
Application
Coal mineral bulk cargos
Landing Gear
Standard 28Ton
Product details
The Luyi 3 Axles 40ft 60 Ton Low Flatbed Semi-trailer represents professional-grade heavy transport engineering, specifically designed for demanding industrial applications. As a premier solution for oversized and heavyweight cargo transportation, this semi-trailer combines exceptional load capacity with superior stability through its optimized 3-axle configuration and reinforced low-profile design.
Name | LUYI flatbed semi trailer |
Overall dimension | 12500 *2500 * 1550mm |
Loading capacity | 40-60T |
Axle | 3 axle |
Rim | 9.0-22.5 |
Tire | 12R22.5 12pieces |
Suspension | Mechanical suspension |
Spring leaf | 90(W)mm×13(Thickness)mm×10(Layer) |
Wheel base(mm) | 6880+1310+1310 |
Kingpin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
Steel Spring | 10/10/10 pieces per axle |
Main beam | Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate thickness is 16mm; Material is Q345B Carbon Steel. |
Side beam | 16mm channel steel (Material is Q235 carbon steel) |
Twist lock | 12 pieces |
Brake chamber | 6 double brake chamber |
Landing gear | China Yahua brand, 28ton, double speed, heavy duty |
Platform plate | 3mm Checkered steel plate |
Brake system | Dual Line braking system |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Valve | KANGJIAN valve(optional) |
Tool box | 1set standard tool box( waterproof type) |
Spare tire carrier | 1 pieces( Patent type) |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
Shipping Terms | By bulk cargo |
Why choose LUYI
There are several compelling reasons why many Customers choose LUYI VEHICLE lowbed trailers.
High quality and durability
LUYI VEHICLE trailers are typically made of high-strength materials that can withstand heavy loads and challenging conditions, ensuring long-lasting performance.
Customization Options
Customers appreciate the ability to customize trailers to meet specific needs, whether for different load sizes, axle configurations or additional features.
Competitive Pricing
LUYI VEHICLE typically offers competitive pricing without compromising quality, making it an attractive option for businesses.
Safety features
LUYI VEHICLE trailers are usually equipped with safety features such as braking systems, reflective markings and safety load devices to ensure safer transportation.
Positive Customer Feedback
A good reputation and positive customer reviews and testimonials help to increase brand trust.
Excellent After-sales Support
Good customer service and support for parts and repairs give buyers peace of mind after purchase.
