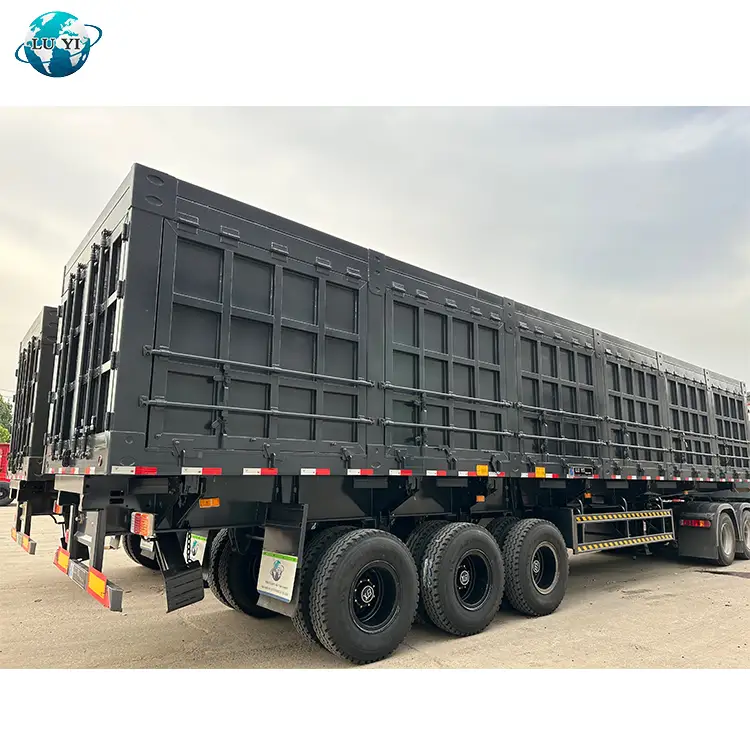

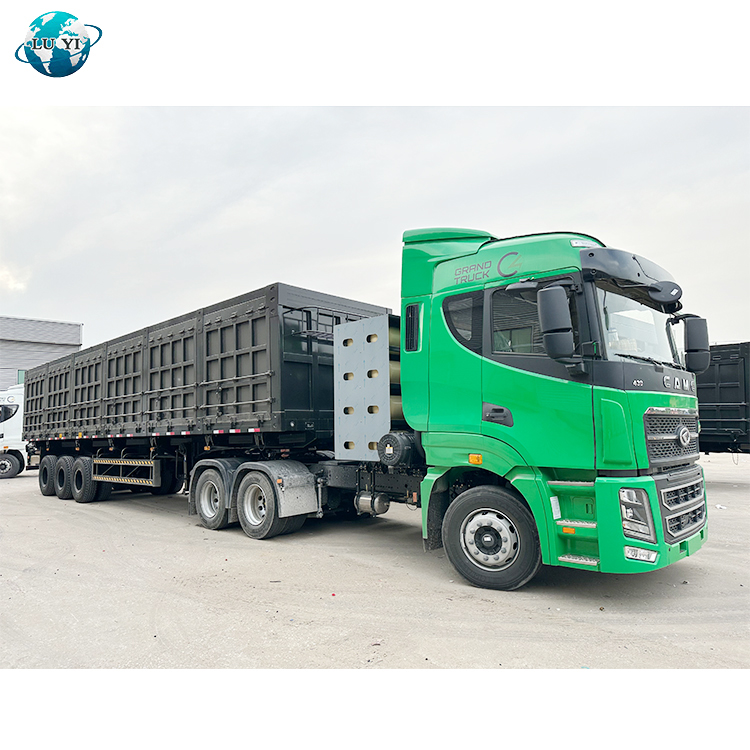

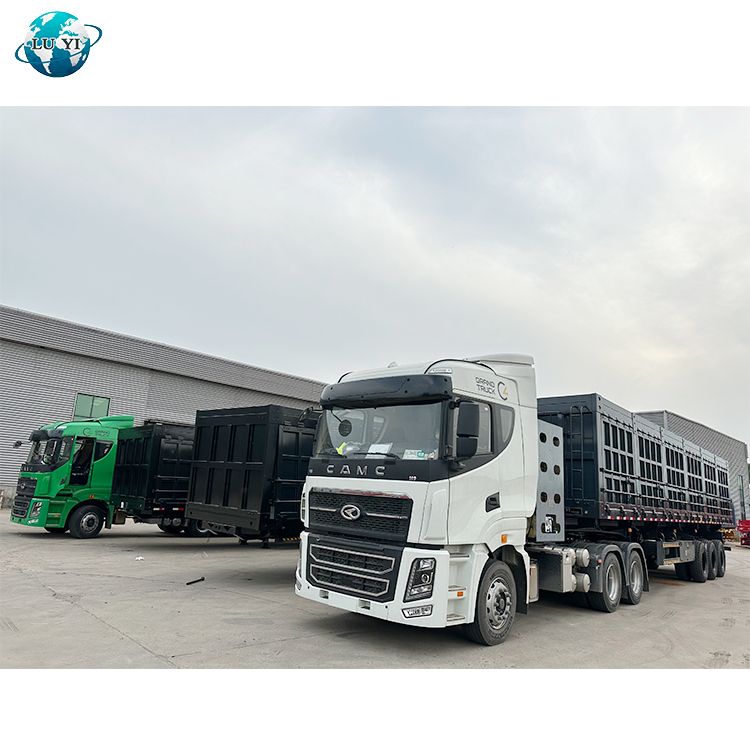

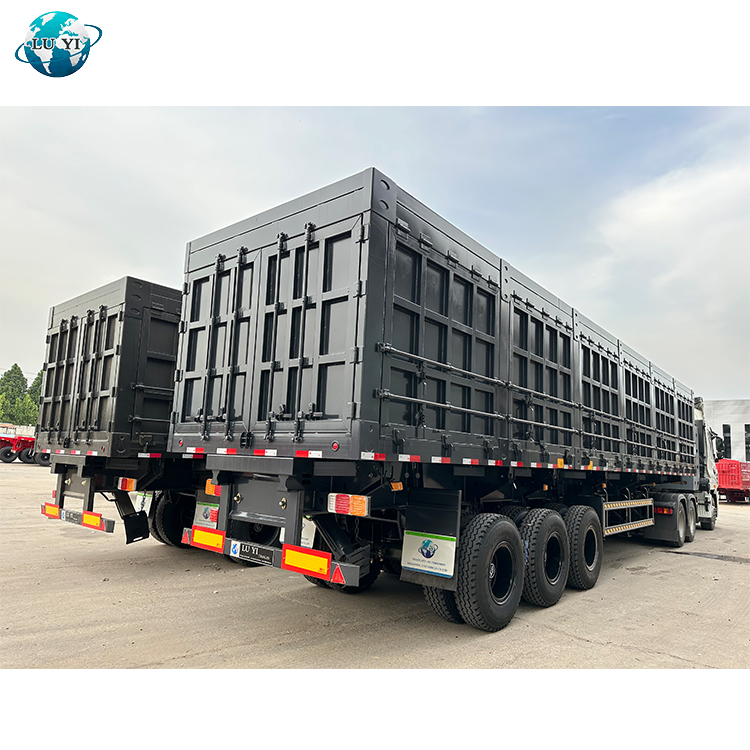

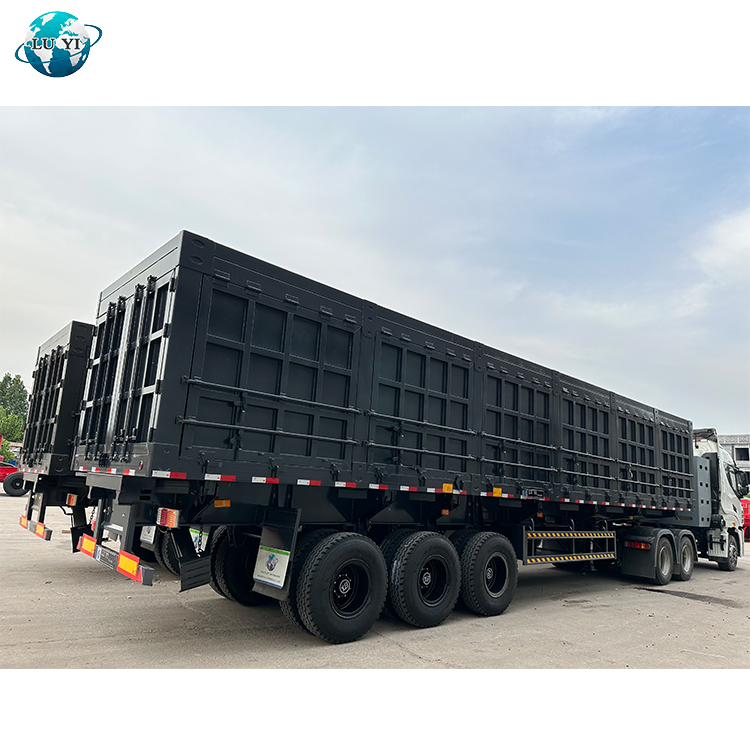

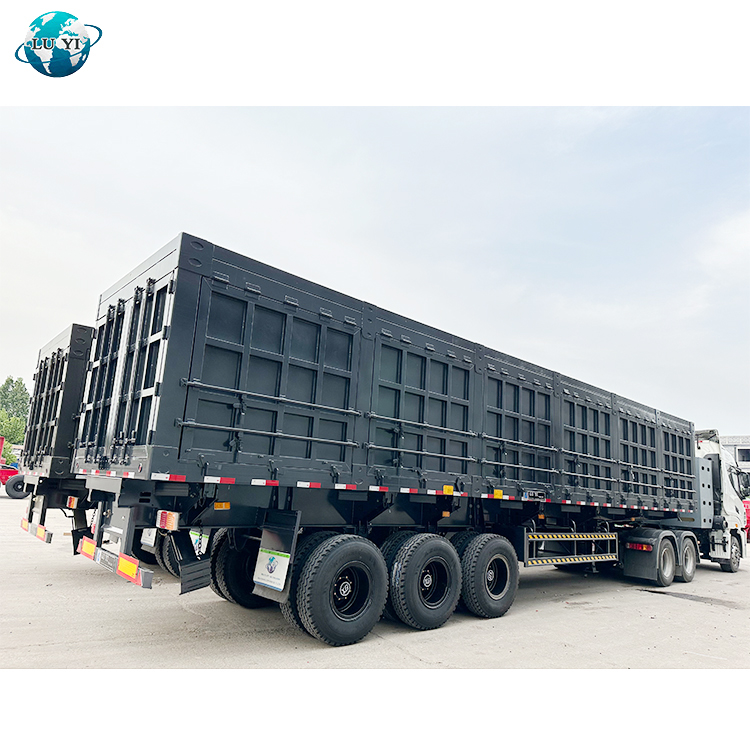

3 Axles 100 Tons New Dump Truck Semi Trailer
This 100 Ton Side Tipping Dump Truck Semi-Trailer combines massive payload capacity with superior functionality for demanding industrial applications. Key features include:
-
100-ton payload capacity – Handles the heaviest bulk material loads
-
Hydraulic side-tipping system – Enables fast, controlled material discharge
-
3-axle heavy-duty design – Ensures optimal weight distribution and road stability
-
Reinforced steel construction – Built to withstand harsh working environments
-
New high-performance model – Latest design with enhanced durability features
-
Wide applications – Ideal for mining, construction, and bulk logistics
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):15(days),2-5(units):20(days),6-10(units):30(days),>10(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI VEHICLE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main Beam
T700/Q345 Steel
Function
Construction sand stone Transportation
Suspension
Mechanical Suspension Air Suspension
Brake System
Dual Line Braking System
Color
Customers Optional
Axle
13/16 Ton Fuwa/BPW
Tire
11.00r20 12r22.5 315 385
Product name
Dump Trailer
Place of Origin
Shandong, China
Max Payload
60T
Size
8500*2600*3800mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
Standard 28Ton
New dump truck trailer Side Tipping Trailer 3 Axles 100 Tons Dump Truck Semi Trailer
side tipper trailer is suitable for the transport of coal, ore, building materials and other bulk materials.After dump trailer can effectively load, unload and transport bulk cargo, U-shaped box is a popular product in construction transportation industry. 2 axle, 3 axle and 4 axle 5 axle 6 axle dump trailer with 40-80 tons load capacity can be provided according to customer requirements.We can offer you good quality and competitive price.
Specification：
Trailer Model | LUYI Side Tipper Dump Semi Trailer |
Overall Dimension | 13000*2500*3800mm |
Inner Dimension | 13000*2500*2000mm |
Box Volume | 65m3 |
Thickness of plate | Bottom: 6/8mm, Side: 4mm/6mm (optional) |
Lifting System | HYVA/CHINA BRAND Cylinder |
Loading Weight | 100-150T |
Axle | 3/4/5/6 axles, FUWA/BPW/YAHUA brand axle |
Suspension system | Mechanical or air supension (American or German) |
Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Traction Pin | JOST 2" or 3.5" traction pin |
Landing Leg | JOST, FUWA or YAHUA brand 28T |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
Product advantages
Durable Construction
Our Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer is built to last, with durable construction and high-quality materials ensuring long-lasting performance.
Efficient Unloading
The side tipper feature of this semi trailer allows for easy unloading of materials, increasing efficiency and productivity for transportation needs.
Optimal Performance
With its advanced design and sturdy build, this semi trailer ensures optimal performance and reliability, making it a popular choice for industrial applications.
Heavy-Duty Transportation
Designed for heavy-duty transportation needs, this semi trailer is capable of handling tough jobs with ease, providing a reliable solution for your hauling needs.
Application Scenario
The field of architecture
The field of agriculture
The field of mining
Garbage transportation
FAQ
1
What is a Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer?
A Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer is a specialized trailer designed for transporting and unloading heavy materials such as aggregates, coal, and construction waste. It is equipped with a tipping mechanism that allows the trailer to easily dump its contents.
2
What are the main application scenarios for a Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer?
This type of trailer is commonly used in industries such as construction, mining, and agriculture for transporting bulk materials from one location to another. It is especially useful in situations where the materials need to be unloaded quickly and efficiently.
3
What are the key features of a Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer?
Some key features of this trailer include a robust construction, high load-carrying capacity, hydraulic tipping mechanism, and multiple axles for increased stability and weight distribution. It is also equipped with safety features such as brake systems and reflectors.
4
Can a Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer be customized according to specific requirements?
Yes, many manufacturers offer customization options for their trailers, including different sizes, load capacities, and tipping mechanisms. Customers can work with the manufacturer to design a trailer that meets their specific needs and requirements.
5
How should a Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer be maintained?
Regular maintenance is essential for ensuring the optimal performance and longevity of the trailer. This includes checking and lubricating moving parts, inspecting the brake system, and keeping the trailer clean and free of debris. It is also important to follow the manufacturer's maintenance guidelines.
6
Are there any safety precautions that need to be taken when using a Heavy Duty 3 Axle Side Tipper Rear Dumper Semi Trailer?
Yes, safety is paramount when using this type of trailer. Operators should be properly trained in operating the trailer and its tipping mechanism. It is also important to secure the load properly before transporting it and to follow all traffic regulations and guidelines. Regular inspections and maintenance are also crucial for ensuring the safety of the trailer and its users.
