Luyi Vehicle-Custom Semi Trailers & Truck Manufacturer Since 2019.

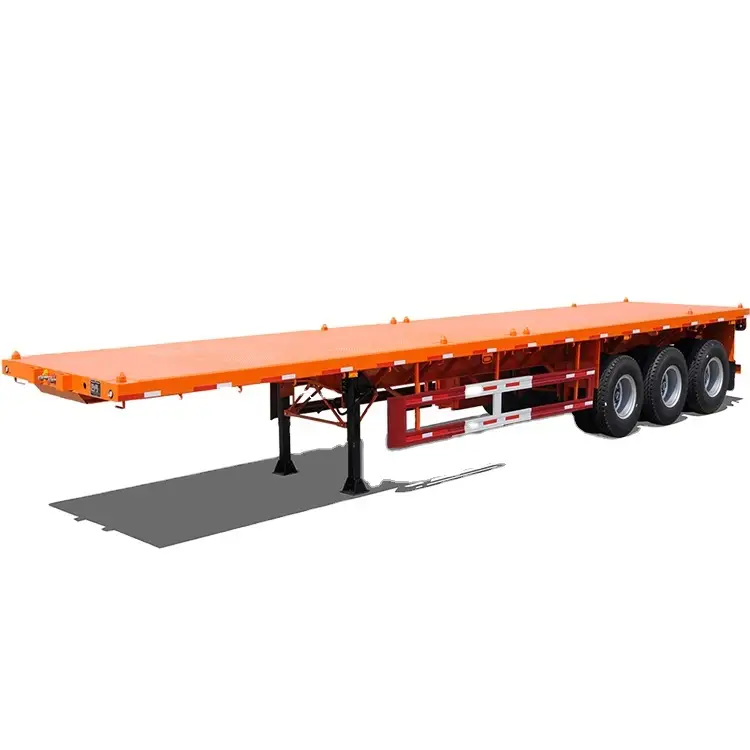

3axle Flatbed Semi Trailer | LUYI
Maximize your fleet's productivity with our best-selling 40ft Flatbed Container Trailer, engineered for 30-50 ton container transport. The heavy-duty construction combines 8mm thick steel frame with BPW axles to deliver exceptional durability in port operations and long-haul logistics. Special features include ABS braking system, LED lighting package, and optional air suspension – all available at competitive wholesale prices. Perfect for shipping companies looking to upgrade their equipment with reliable, high-capacity trailers.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):15(days),2-10(units):25(days),>10(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Function
Transport Heavy Machinery/container/Steel
Suspension
3axle Mechanical Suspension
Color
Customised
Axle
3Axle
Tire
12R22.5
Product name
Flatbed semi trailer
Place of Origin
China
Max Payload
60TON
Size
12500x2500MM
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Twist Lock
12Units
Rim
9.0x22.5
King Pin
JOST 2" or 3.5" traction pin
Landing Gear
Standard 28 Ton
Specification：
| Product Name | 3Axle flatbed semi trailer |
| Overall (L*W*H) | 12500*2500*1530mm |
| Axle specs. | LUYI Fuwa or BPW Brand |
| Suspension | Mechanical or air supension (American or German) |
| Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 |
| King Pin | JOST 2" or 3.5" traction pin |
| Landing gear | JOST, FUWA or YAHUA brand 28T |
| Wheelbase | 7180/6680/6260+1310+1310mm,Or other |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
| Tire | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
| Spare Tire Carriers | 2 pieces |
| The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; |
| Material is Q345 Carbon Steel. | |
| Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Platform plate | 5/6/7 mm Diamond Plate |
| Brake | Kemi Brand of China |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
| ABS system | optional |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Tool box | 1 sets(waterproof type) |
| Spare tire carrier | 1 sets(Patent type) |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
Flatbed semi trailer Drawing
Flatbed semi trailer advantage
-It mainly used for long-distance freight transport& 20ft 40ft container.
-It has 12 twist lock for 20ft&40ft container.
-High-strength international steel is used for the flatbed semi trailer walking structure;The vehicle has a light dead weight, and ensures its anti-distortion, anti-seismic, anti-turbulence ability, to meet different road loading capacity.
-Leaf spring suspension system support composition, reasonable structure, with strong rigidity and strength, used to support the load gentle impact.
-It can be designed as customer's requirements.
