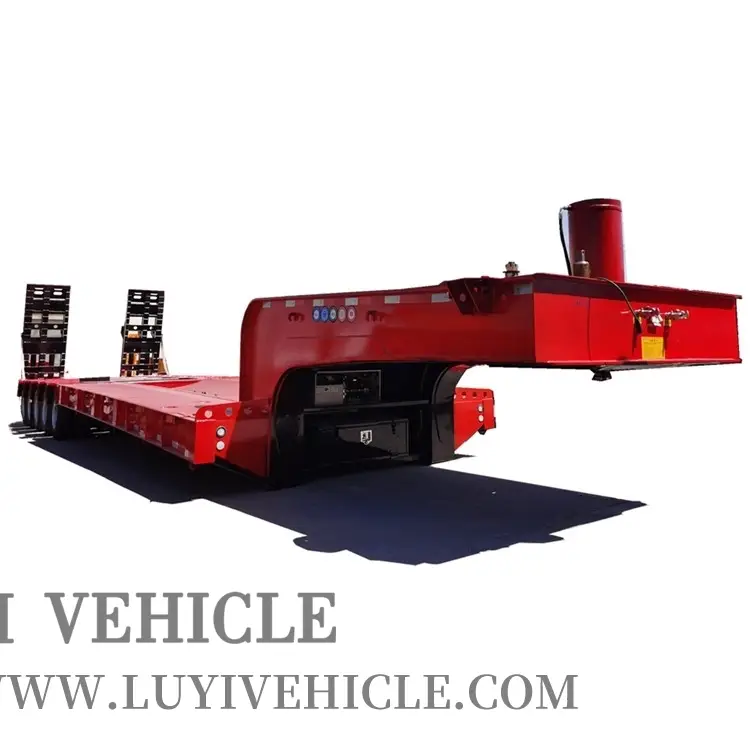

Gooseneck Lowboy Semi Trailer For Sale
This tri-axle lowbed trailer comes in multiple load capacities (40-100 tons) to suit various heavy-haul needs. The gooseneck configuration improves towing balance, while the drop-deck design minimizes ground clearance issues. Key features include heavy-duty suspension, ABS brakes, and customizable deck lengths/widths for different cargo types. Ideal for transporting construction equipment, agricultural machinery, and industrial components, this trailer is widely used in road transport, oilfields, and infrastructure projects. Its robust build ensures long-term service with low maintenance costs.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):10(days),2-10(units):21(days),11-25(units):45(days),>25(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
Luyi
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Surface finish
Power Coating
Brake
Air Brake
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
Standard 28Ton
Used to transport non-detachable objects such as excavators, loaders and harvesters.
Time saving ,powerful and fast power transport
4 lines 8 axles Lowbed Trailer
5 lines 10 alxes Lowbed Trialer
9 lines 18 axles Lowbed Trailer
3 axles hydraulic lifting Lowbed Trailer
4 axles with sidewall Lowbed Trailer
Product Paramenters
We can design and manufacture lowbed semi trailer according to your exact requirements, the following specifications for your reference.
|
Dimensions
|
13000*3000*(700mm-1200mm) (According to customer demand)
|
|
Axle specs.
|
FUWA ,YAHUA or BPW Brand
|
|
Suspension
|
Mechanical or air supension (American or German)
|
|
Rim
|
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
|
|
King Pin
|
JOST 2" or 3.5" traction pin
|
|
Support legs
|
JOST, FUWA or YAHUA brand 28T
|
|
Wheelbase
|
7180/6680/6260+1310+1310mm,Or other
|
|
Steel Spring
|
8/8/8, 10/10/10, 12/12/12 pieces per axle
|
|
Ladder
|
Manual or hydraulic automatic
|
|
Electrical system
|
24V, 7 pin socket, One set 7-core standard Cable
|
|
Tire
|
8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
|
|
Spare Tire Carriers
|
2 pieces
|
|
The material of Main beam
|
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;
Material is Q345 Carbon Steel. |
|
Side beam
|
16mm-25mm channel steel (Material is Q235 carbon steel)
|
|
Platform plate
|
5/6/7 mm Diamond Plate
|
|
Brake
|
Kemi Brand of China
|
|
Brake Chamber
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
|
|
ABS system
|
optional
|
|
Light
|
Tail lamp with turn signal, brake light & reflector, side lamp etc
|
|
Tool box
|
1 sets(waterproof type)
|
|
Spare tire carrier
|
1 sets(Patent type)
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
|
|
Packing
|
Polish with wax before shipping |
