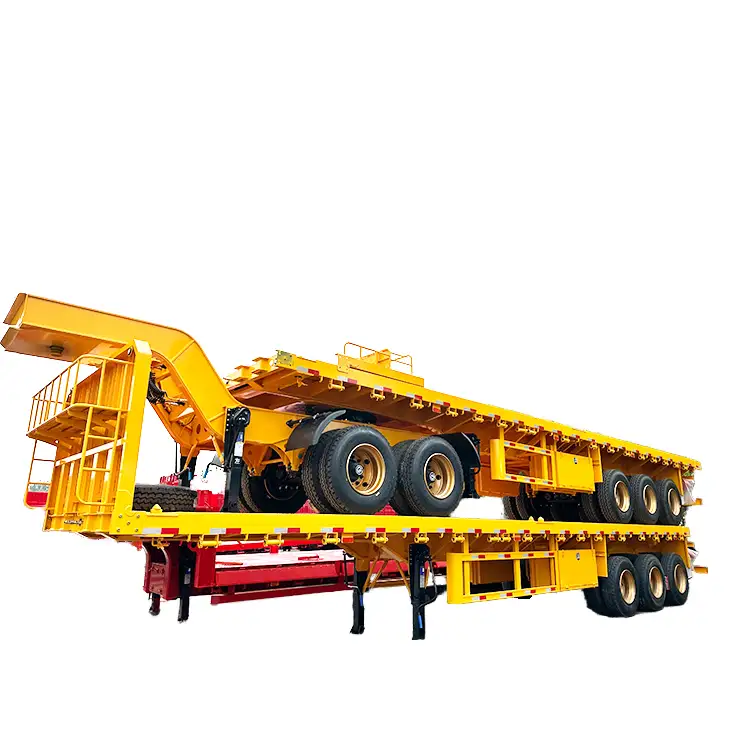

20 Ft 40 Ft Superlink Semi Trailer | LUYI
This professional Coal Haulage Semi-Trailer combines rugged reliability with optimized cargo space for mining and energy sector logistics. Key specifications include:
-
20ft/40ft customizable lengths for varied operational needs
-
100+ ton payload capacity for high-density coal transport
-
Mongolia-adapted suspension for unpaved mining roads
-
Reinforced steel floor/walls with anti-corrosion treatment
-
Superlink coupling system for enhanced road train stability
-
Dust-proof tarping system meeting environmental standards
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):15(days),2-10(units):25(days),>10(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI VEHICLE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Function
Transport 20ft 40ft Container
Suspension
Mechanical Suspension
Brake System
Dual Line Braking System
Color
Customers Optional
Axle
13/16 Ton Fuwa/BPW
Tire
11.00r20 12r22.5 315 385
Product name
Flatbed Semi Trailer
Place of Origin
Shandong, China
Max Payload
60T
Size
12500*2500*1500mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Keywords
3 Axle 40ft
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
JOST Brand Two-speed
Feature
1.The body adopts high quality steel, advanced technology and strict production.The machine has reasonable structure, reliable performance, simple operation and beautiful appearance. 2.This series semi - trailer is beam type structure, longitudinal beam is straight line or gooseneck shape.The web height is 400mm ~ 550mm manganese plate welding, longitudinal beam automatic buried welding, frame shot peening, beam insertion longitudinal beam welding. 3.Widely used in different areas, mainly for long-distance freight transport. 4.Reasonable structure, strong rigidity and strength, can impact the bearing. 5.Customized design to meet different needs of customers. 6.Advanced manufacturing technologyLaser cutting, robot automatic welding, reliable quality 7.Advanced painting techniquesKTL electrophoresis + powder spraying, instead of the traditional painting process, has a good anti-corrosion effect, long service life.
Product Paramenters
Excellent technology: the main parts of the vehicle are processed by advanced equipment, and the longitudinal operation is welded and formed by CNC plasma cutting and automatic submerged arc welding machine imported from the United States. It has the characteristics of high cutting precision and good welding forming: the assembly machine is used to realize the assembly of wheel and axle, ensuring the accuracy of wheelbase;The vehicle parts are treated with shot peening, which greatly strengthens the adhesion of paint and improves the anti-corrosion performance of structural parts: all the assembly parts are assembled and formed after air injection to ensure the anti-corrosion performance of the whole vehicle. Frame: The frame is made of high strength steel plate with high quality and low alloy, and the space frame structure is made of welding zigzag longitudinal beam and integral penetrating beam.Reasonable structure, improve the strength, stiffness, radial and other properties of the frame, with light weight, bearing capacity and other characteristics.
|
Trailer Model
|
|
|
Overall Dimension(Lx W x H)(mm)
|
12500*2500*1550mm ( Exact size depends on the final design)
|
|
Loading Weight
|
30-150T
|
|
Tare Weight
|
6.5-10T
|
|
Thickness of plate (mm)
|
Bottom: 6mm, Side: 4mm
|
|
Lifting Type
|
Front side lifting
|
|
Lifting System
|
LUYI Oil lifting Cylinder
|
|
Axle
|
3 axle, 13TON Axle
|
|
Wheelbase(mm)
|
6880+1310+1310
|
|
Suspension system
|
Mechanical suspension or air suspension
|
|
Steel Spring
|
8/8/8 , 10/10/10 12/12/12 Heavy duty leaf spring suspension
|
Details Images
