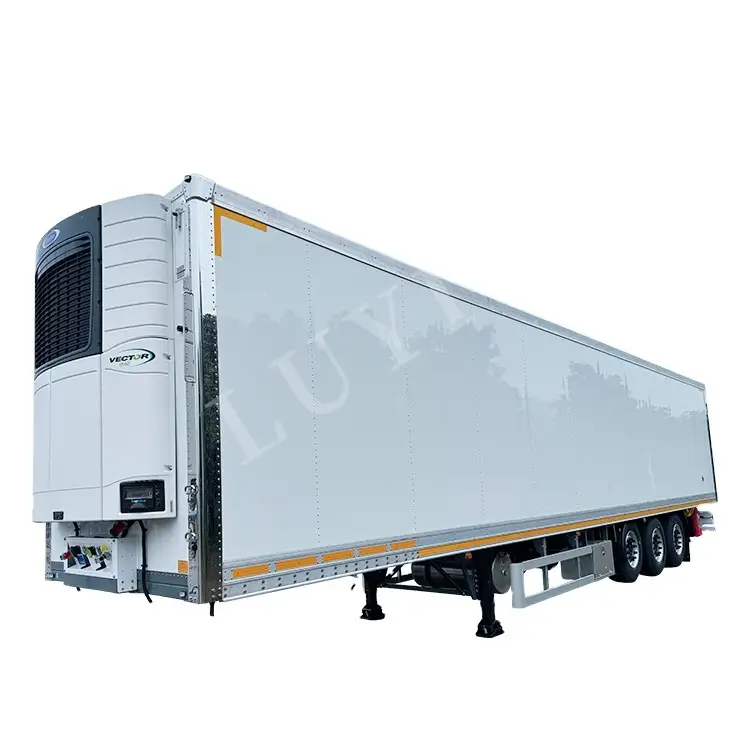

3-axle refrigerated transport semi-trailer
The Luyi 3 Axles 53ft/40ft Refrigerated & Dry Van Semi-Trailer is a high-performance transport solution engineered for temperature-sensitive cargo, offering both refrigerated and dry van configurations to meet diverse logistics needs. Built with a robust 3-axle chassis for optimal weight distribution and road stability, this trailer is available in two sizes: a spacious 53ft model for long-haul, high-capacity shipments, and a more compact 40ft version suited for urban deliveries and tighter routes. The refrigerated variant features advanced thermal insulation and precision cooling systems capable of maintaining temperatures from -20°C to +12°C, ensuring safe transport of frozen foods, pharmaceuticals, and other perishables. Constructed with galvanized steel frames, lightweight aluminum or composite panels, and airtight seals, it delivers exceptional durability and energy efficiency.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-5(sets):15(days),>5(sets):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Suspension
Mechanical Suspension
Brake System
WABCO Valve
Axle
3*13T FUWA Brand
Tire
12R22.5
Product name
Refrigerator Semi Trailer
Place of Origin
Shandong, China
Max Payload
>30000 kg
Size
13600mm*2550mm*2400mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Leaf Spring
10 / 10 / 10
Rims
8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5
Axles No
2 / 3 / 4 Axles
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
JOST Brand Two-speed

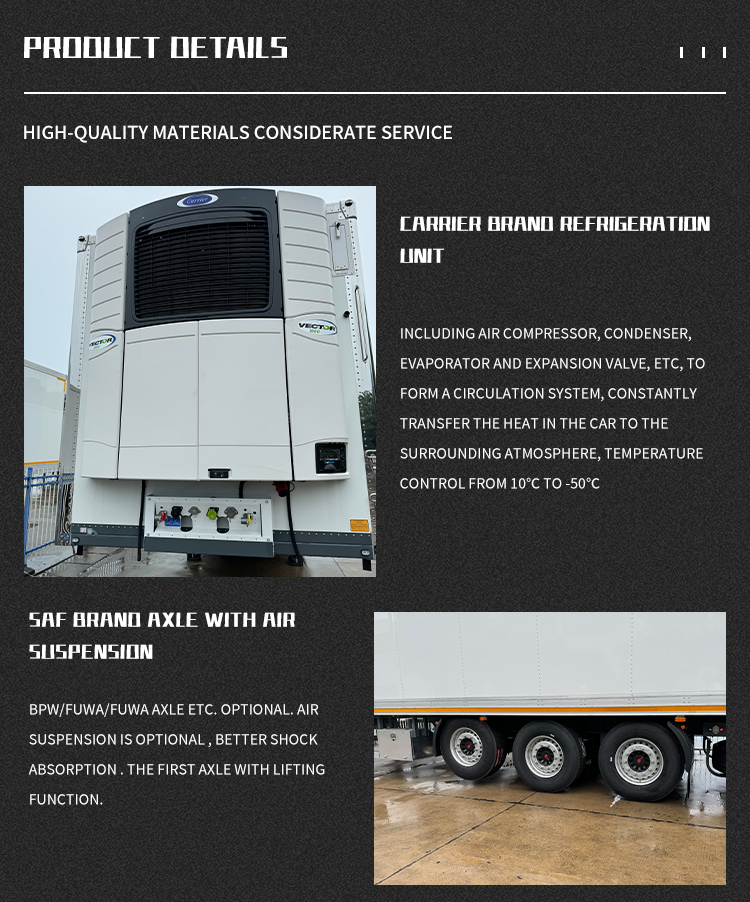

Product details

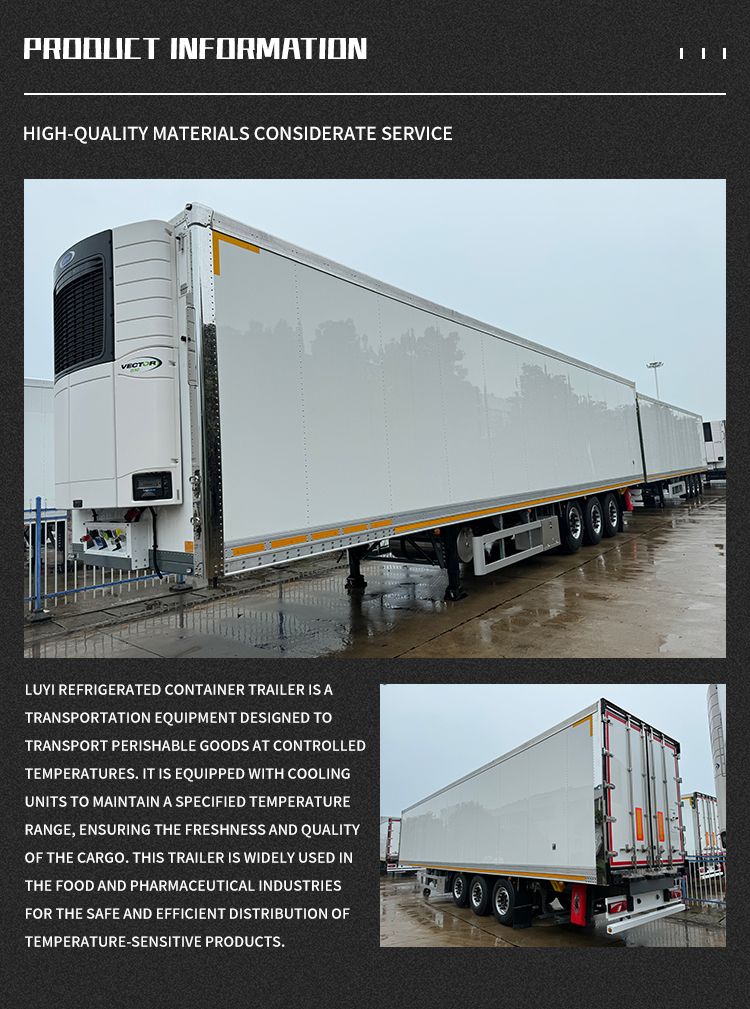

The Luyi Refrigerated Semi-Trailer is a cutting-edge cold chain solution designed for temperature-controlled transport of perishable goods. Available in 40ft and 53ft configurations with 3-axle stability, our trailer features:
Precision Temperature Control: Maintains consistent environments from -20°C to +12°C

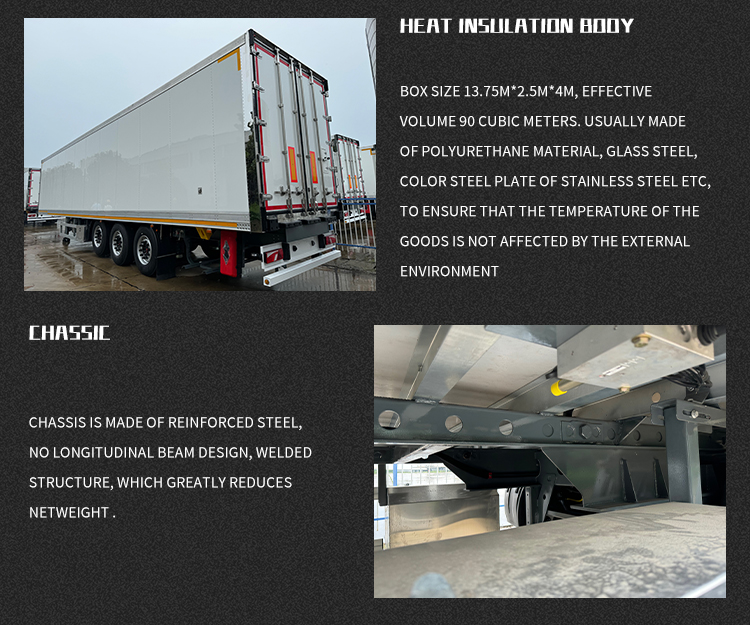

Advanced Insulation: Polyurethane foam walls with <0.25W/m²K thermal conductivity
Refrigerated Van Semi Trailer Specification | ||
Overall Dimensions | 15300*2280*3550 mm | |
Volume | 75 cbm | |
Payload | 40-60ton | |
Floor | 3mm checker plate | |
Leaf Spring | Doll type Leaf spring | |
Spare Tire | One set of spare tire including a carrier | |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
