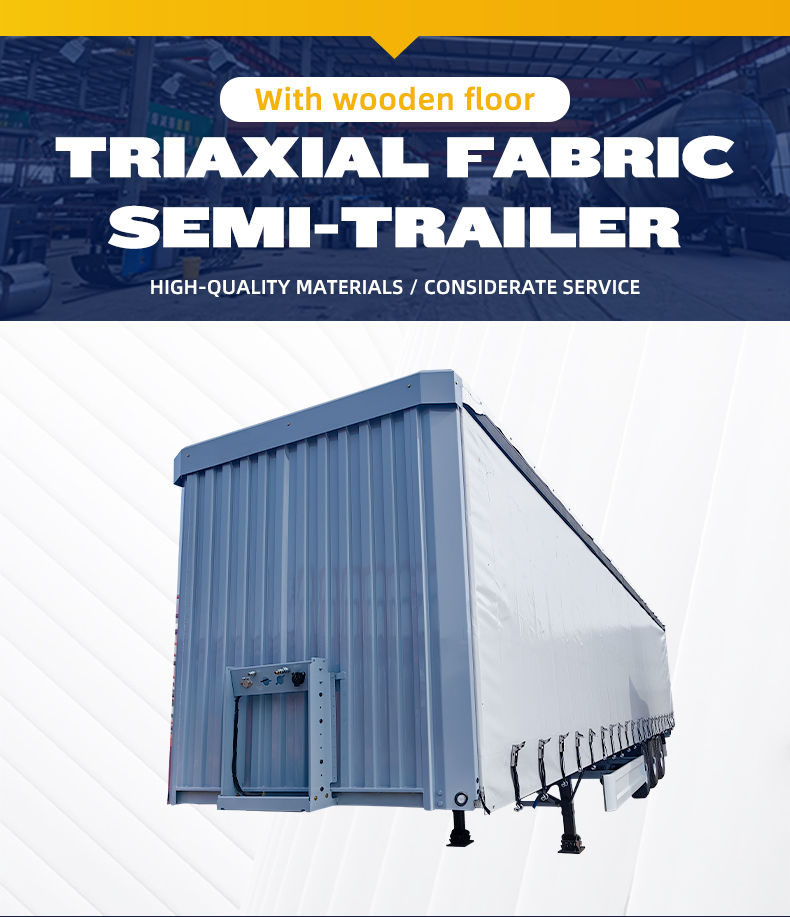

Tarpaulin Sliding Semi-Trailer 40ft 3 Axle
The Luyi 40ft Tarpaulin Sliding Semi Van Trailer is a high-performance curtain side semi-trailer designed for secure and efficient cargo transport. Featuring a durable sliding tarpaulin system, it allows for quick and easy loading while providing full weather protection. Built with a robust steel frame and reinforced side curtains, this trailer ensures durability and long-term reliability. Ideal for logistics, freight, and heavy-duty transportation, it offers versatility, strength, and cost-efficiency for modern haulage needs.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):16(days),2-5(units):20(days),>5(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Suspension
Mechanical Suspension
Brake System
WABCO Valve
Tire
12R22.5
Product name
curtain side trailer
Place of Origin
Shandong, China
Max Payload
60-80 ton
Size
11000mm-13000mmx2500mmx600mm-800mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Rims
8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5
Axle Brand
13TON Axle BPW/FUWA Brand
Axles No
3
Keywords
Side Wall Trailer
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
JOST Brand Two-speed
Side curtain trailer is a kind of van trailer,it has all the characteristics of a normal van. The compartment is completely enclosed and protected against rain and dust, providing all-day protection for the cargo.
Specification
Overall Size (L×W)mm | 14,200 mm(length) x2,500 mm(width)x 4,000mm(height ) |
Floor | Wooden floor |
Axle： | Fuwa BPW SAF brand. |
Suspension: | Air suspension |
Curtain | Made of reinforced PVC curtains |
Top Tarpaulin | Top sliding systerm |
Pillar | Mobile Pillar |
Tire | 6 units , 385/65R22.5 |
Body Sheet | Body material: wear resistant steel. |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
Brake air chamber | Spring loaded braking chambers, T30/30. |
Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
Kingpin: | 2.0 inch (50# ) or 3.5 inch (90#) , bolted or welded type |
Tool box: | Factory standard |
Landing gear | 28ton, double speed, heavy duty Single-side Operation. |
Painting: | Polyurethane paint, with long service life, and avoid the vehicle getting rust |
Color and logo | According to customer’s requirement |
Side curtain trailers are closed by curtains on both sides and have some outstanding advantages. Firstly, both sides of the side curtain trailer are made of soft tarpaulin flexible material, above is the guide rail and below is the locking structure, when loading and unloading, the curtain can be pulled open quickly, after pulling open the side tarpaulin, inside is the mobile stable pile for fixing the goods, the role is equivalent to the traditional barn railings of the trailer. This stable pile can also be moved back and forth arbitrarily, which is convenient for loading and unloading goods with forklift pallets, and both sides can be loaded and unloaded at the same time, thus the loading and unloading efficiency is very high. Secondly, the weight of the side curtain is significantly lighter than that of the rigid side panel, and after the stable pile is locked and fixed to fix the cargo, more cross rails can be set up on it, and in order to reduce the weight as much as possible under the premise of guaranteeing the protection strength, the cross rails are generally made of aluminium alloy or wood, so the whole vehicle is lighter than that of a van, and reduces the self-weight. Thirdly, from the appearance, the side curtains are flat and suitable for printing various patterns, thus the appearance is significantly more beautiful than the vans.

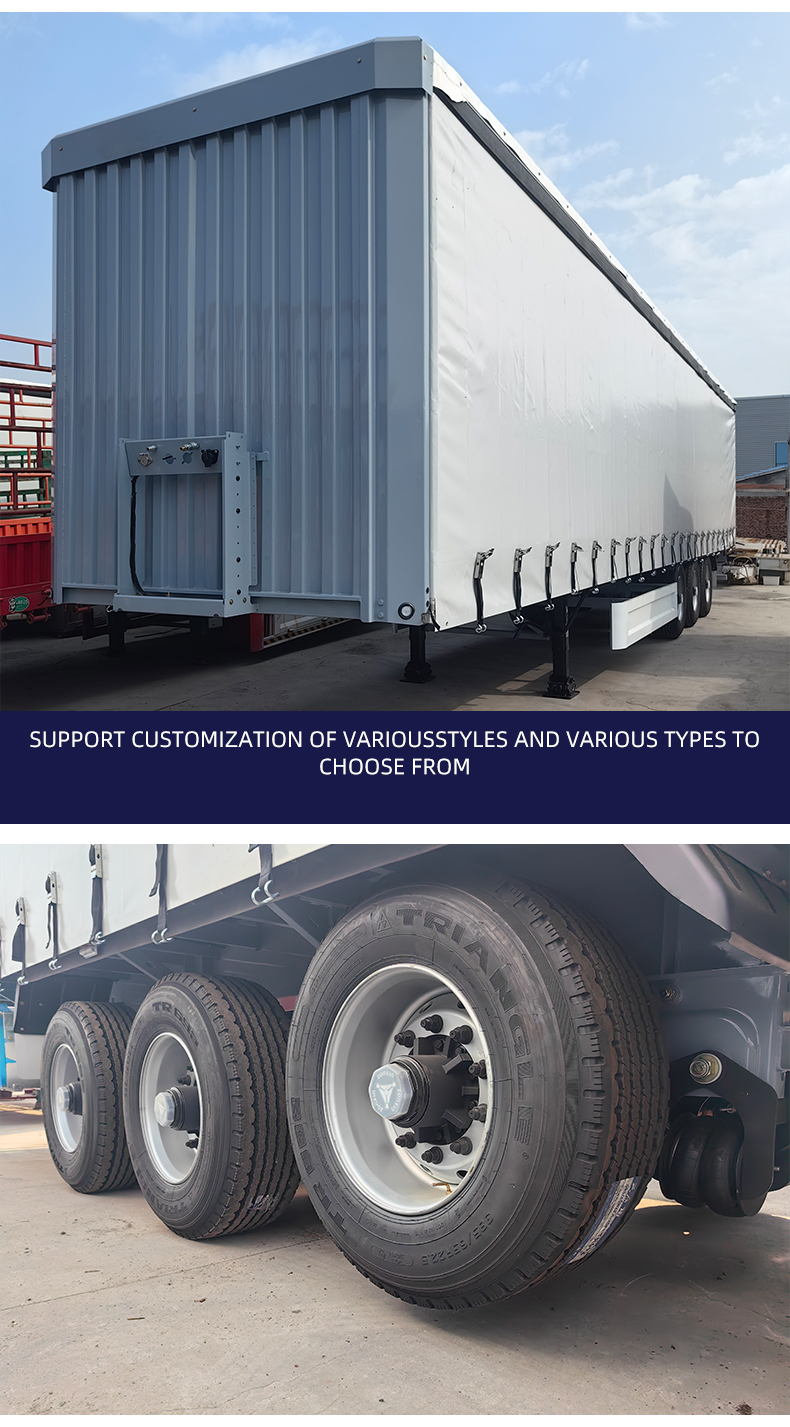

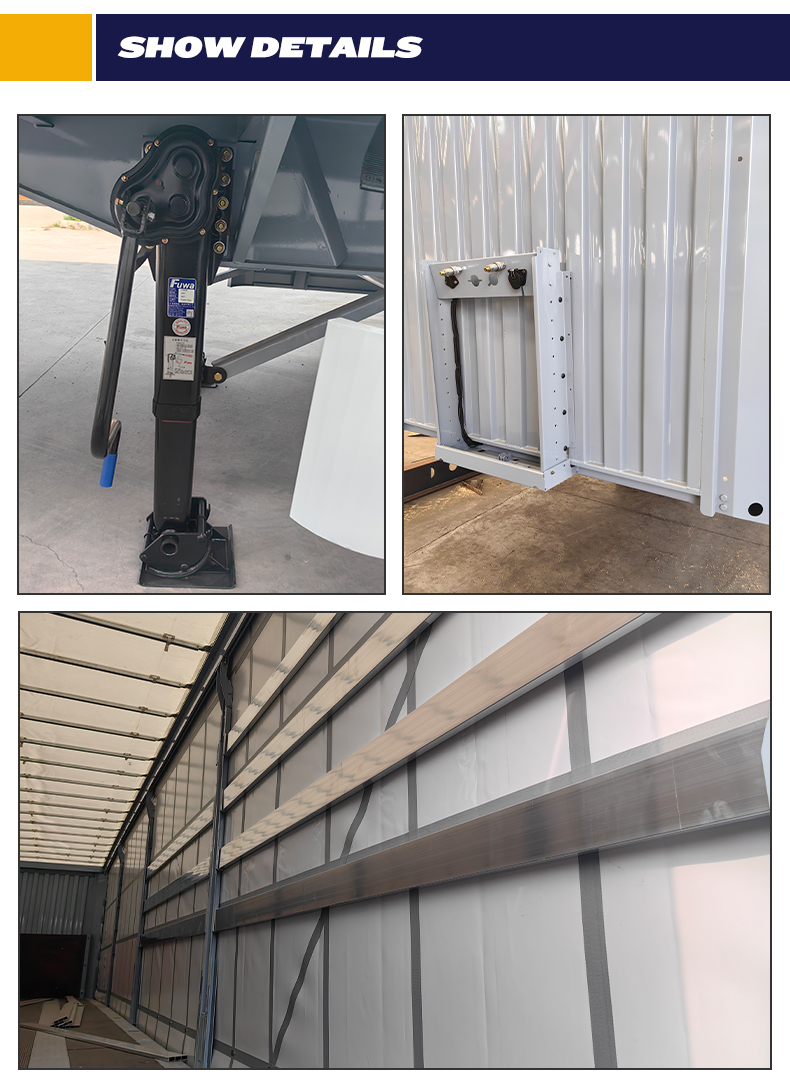

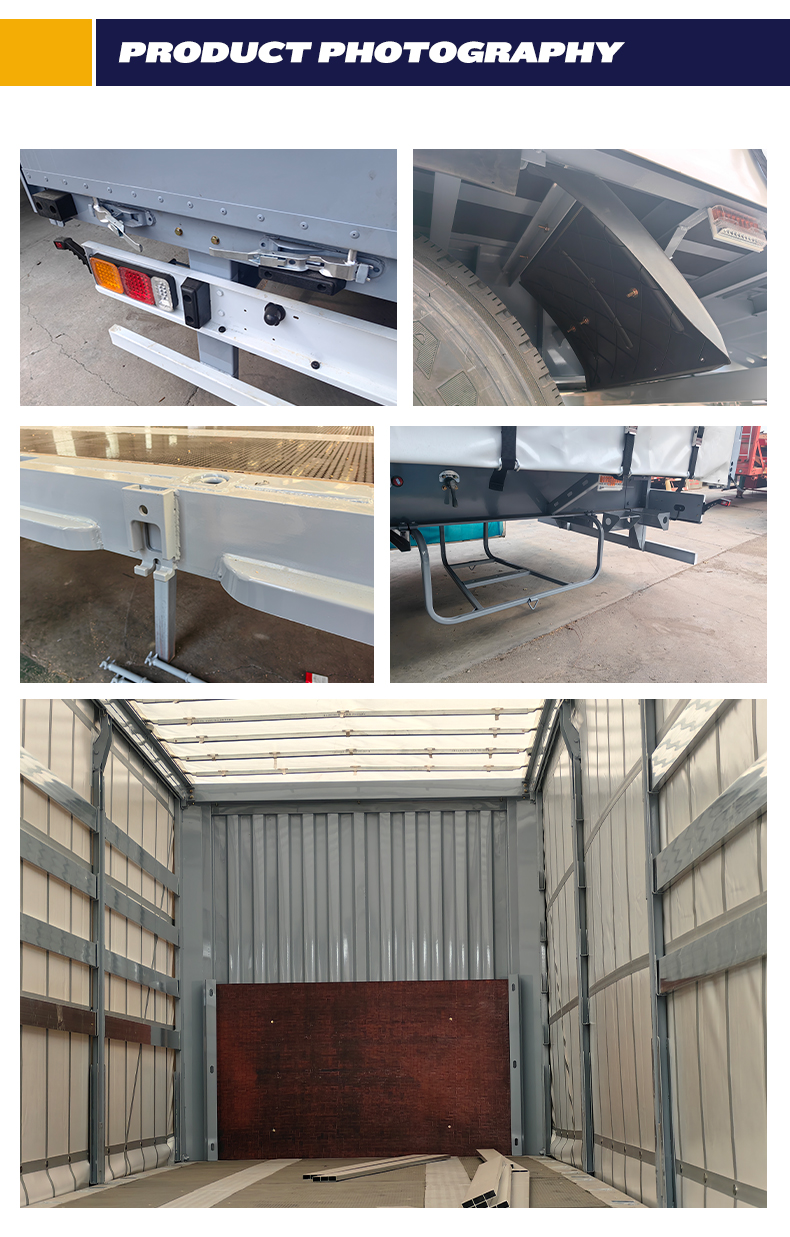

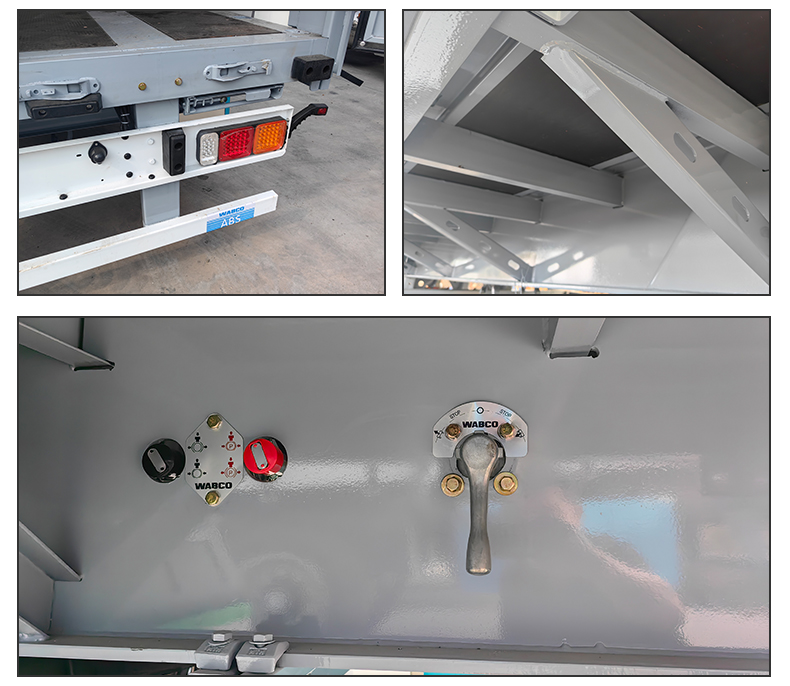

Product Display
Why choose LUYI
There are several compelling reasons why many Customers choose LUYI VEHICLE lowbed trailers.
High quality and durability
LUYI VEHICLE trailers are typically made of high-strength materials that can withstand heavy loads and challenging conditions, ensuring long-lasting performance.
Customization Options
Customers appreciate the ability to customize trailers to meet specific needs, whether for different load sizes, axle configurations or additional features.
Competitive Pricing
LUYI VEHICLE typically offers competitive pricing without compromising quality, making it an attractive option for businesses.
Safety features
LUYI VEHICLE trailers are usually equipped with safety features such as braking systems, reflective markings and safety load devices to ensure safer transportation.
Positive Customer Feedback
A good reputation and positive customer reviews and testimonials help to increase brand trust.
Excellent After-sales Support
Good customer service and support for parts and repairs give buyers peace of mind after purchase.
FAQ
1
Do you offer after-sales support and warranty?
Yes, we will offer technical support and free operation training: vehicle usage, fuel-saving tips, daily inspections, etc. The entire vehicle is guaranteed for six years. During the warranty period, non-human-caused damaged parts will be repaired or replaced free of charge.
2
How long does it take to place a bulk order?
The delivery time depends on the quantity and location. We have advanced production equipment and a large production scale. Under the premise of ensuring the quality of the goods, we will produce the goods for you at the fastest speed.
3
If I purchase in large quantities, can I get a discount?
Yes, we will offer you a stepped price discount plan based on your purchase scale:
· Purchase ≥5 units at a time: Enjoy a 5% discount on the basic purchase price.
· Purchase ≥10 units at a time: Enjoy a 10% discount on the VIP customer price;
· Single purchase of 20 or more units: A group-exclusive discount can be applied for (required)
It is negotiable and comes with a free first-year maintenance service.
4
Can the product be customized?
LUYI supports customized products. You can tell us your requirements and we will help you choose the most suitable solution for you
5
Other services?
We have a loading area. If you have any other goods, you can send them to us for packaging together with our products (free of charge).
6
How to order a semi-trailer?
Contact us through our website and our team will assist you in choosing the semi-trailer that suits your needs and provide you with a detailed quotation.
