Lpg Lng Water Fuel Tank Tanker Trailer | LUYI

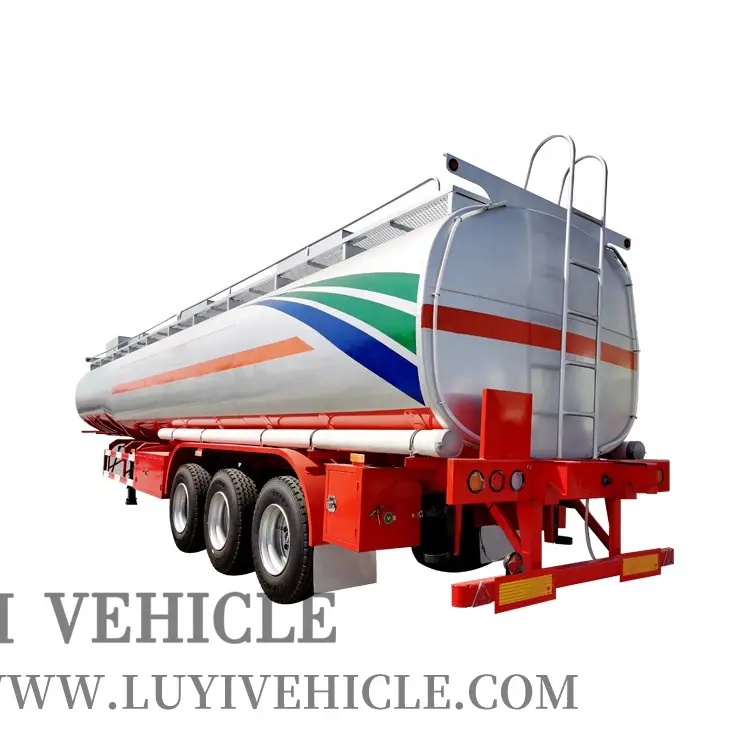

LUYI's most advanced LPG/LNG/ water tank trailer redefines the versatility of liquid transportation. This advanced oil tanker can seamlessly switch between liquefied gas transportation (LPG/LNG) and water delivery applications, providing unparalleled operational flexibility for modern logistics fleets.
5.0
Samples:
$10000.0/unit | Min. order : 1 unit
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):15(days),2-15(units):30(days),16-30(units):50(days),>30(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
Luyi
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Suspension
Mechanical or Air
Tire
12R22.5
Product name
Aluminum Alloy fuel Tanker Trailer
Place of Origin
China
Max Payload
20001-25000 kg
Size
12500*2600*4000
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Brake
Duel Line Brake System
Rims
8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5
Axle Brand
13TON Axle BPW/FUWA Brand
Axles No
2 / 3 / 4 Axles
Loading capacity
45T~ 100T
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
JOST Brand Two-speed
Products Description：
Name | Fuel tank semi trailers | |
Trailer Model | Round Shape or Ellipse | |
Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm | |
Tare weight | About 8-12.8T | |
Total Volume | 25m³-60m³ | |
Material | 1.Q235B/Q345B carbon steel 2.5XCT4aluminum5454 3.304 stainless steel | |
Tanker Body Material | 1. 6mm/5mm Q235B/Q345B carbon steel 2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel | |
Axles | 13T/16T, FUWA/BPW/HuaJing brand | |
Axle Number | 2/3/4/ Axle or multi axle | |
Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . | |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) | |
King Pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | |
Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) | |
Rear ladder | Dismountable or foldaway | |
Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm | |
Spring leaf | 8/10/12/16 pieces | |
Manhole Cover | 2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards | |
Brake Chamber | 6 double brake chamber | |
Electrical System | 24V, 7core socket, lights according to European standards | |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher | |
Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) | |
Discharge mouth | diameter is 280mm | |
Receptacle | 7ways (7wire harness) | |
The Above Information is Standard Spec.If you want get more specific Spec.Please send inquity to us. | ||
Product detail description
Advanced Design for Professional Liquid Logistics
Our liquid tanker semi-trailers are engineered for high-capacity, safe transportation of fuels, chemicals, and food-grade liquids. Featuring high-strength stainless steel construction and multi-compartment designs, these tankers deliver leak-proof performance while meeting strict international safety standards.
Rational Analysis design Adhering to the concept of uniform force on the trailer frame.42 tough ribs design, Ensure the safety and carrying capacity of trailer.
Like 10mm steel plate, even to10.9mm thick, special custom-made titanium and niobium containing steel plate,titanium content of 0.98%‰, which ensure Beam and frame's Toughness and strength.
adopts a new type of suspension system, which has high strength and strong impact resistance; the load of each axle is balanced, and the system tie rod angle is designed reasonably
Anti-Tire abrasion Suspension Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile,Easy to disassemble and maintain.
Integrated Advanced Low-Alloy Axle Beam Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
The whole car Is sprayed with plastic treatment, which can remove all kinds of rust impurities on the surface, Is not easy to peel, and the palnt color Is bright and bright, and the adheslon is strong.
Why choose LUYI
There are several compelling reasons why many Customers choose LUYI VEHICLE lowbed trailers.
High quality and durability
LUYI VEHICLE trailers are typically made of high-strength materials that can withstand heavy loads and challenging conditions, ensuring long-lasting performance.
Customization Options
Customers appreciate the ability to customize trailers to meet specific needs, whether for different load sizes, axle configurations or additional features.
Competitive Pricing
LUYI VEHICLE typically offers competitive pricing without compromising quality, making it an attractive option for businesses.
Safety features
LUYI VEHICLE trailers are usually equipped with safety features such as braking systems, reflective markings and safety load devices to ensure safer transportation.
Positive Customer Feedback
A good reputation and positive customer reviews and testimonials help to increase brand trust.
Excellent After-sales Support
Good customer service and support for parts and repairs give buyers peace of mind after purchase.
