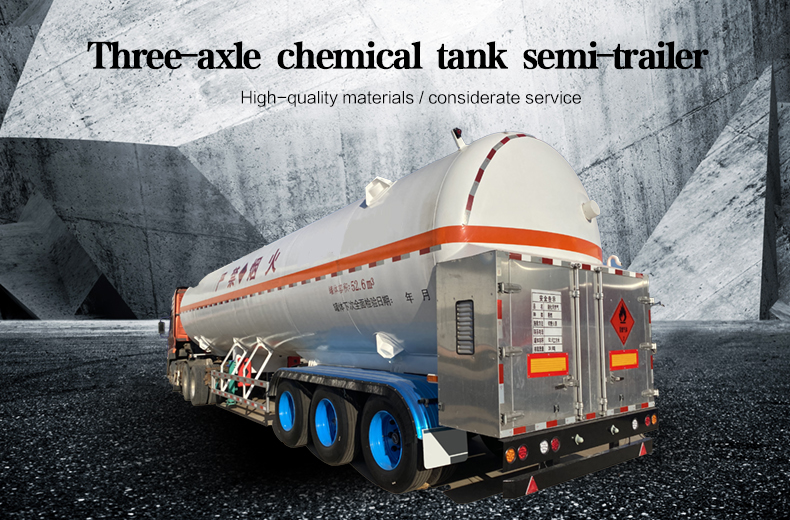

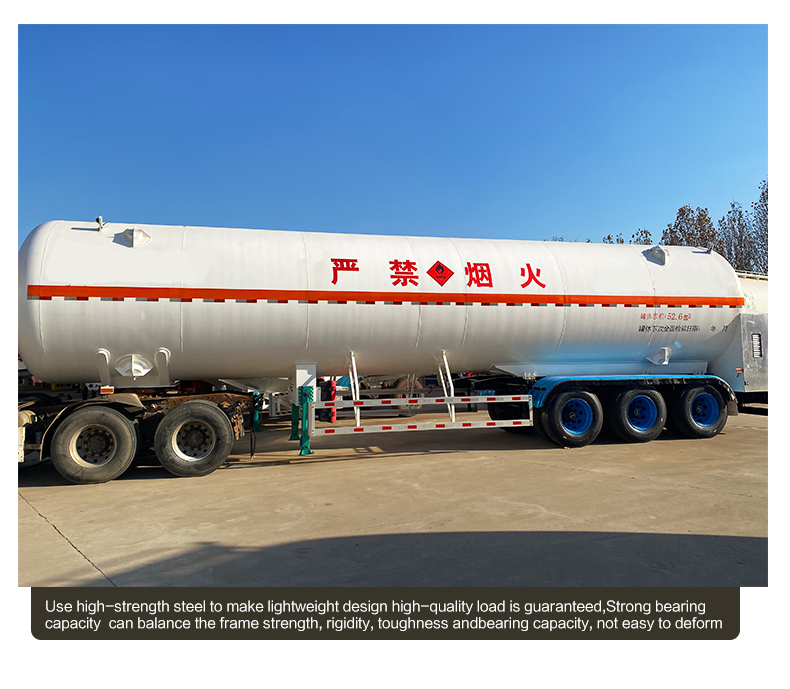

Carbon dioxide Lpg Liquid Gas Lng Tanker Semi Trailer

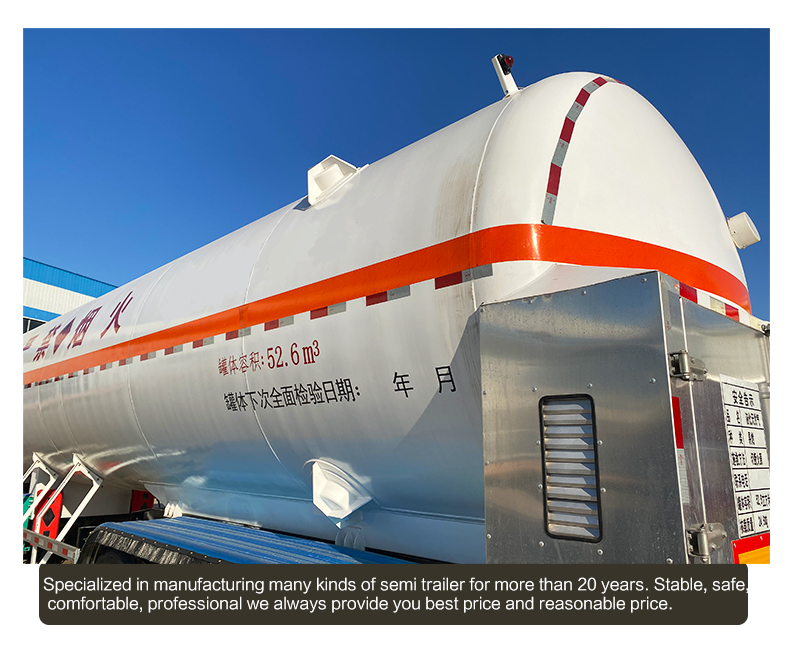

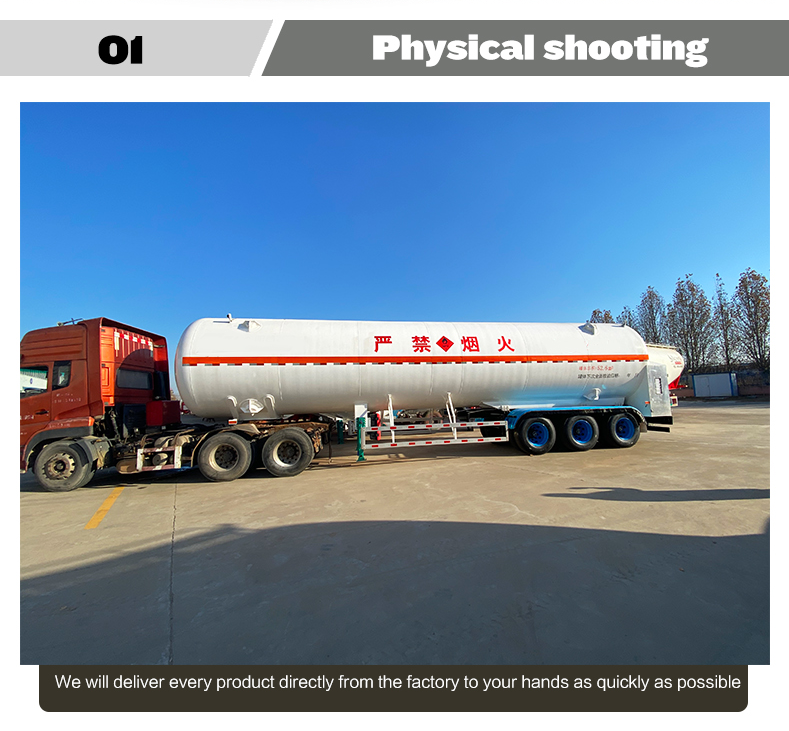

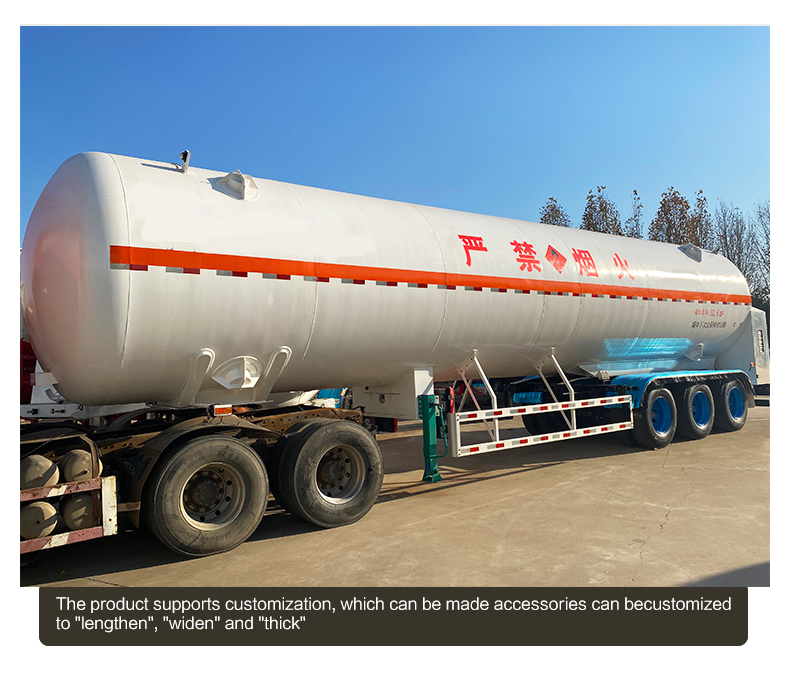

The carbon dioxide/liquefied petroleum gas/liquefied natural gas tanker semi-trailer is a high-performance low-temperature transportation solution, specially designed for the safe and efficient handling of liquefied gases. It adopts vacuum-insulated stainless steel tanks, which can maintain ultra-low temperatures (-196°C for liquefied natural gas and -78°C for carbon dioxide), while ensuring leak-proof durability. This trailer can provide a capacity of 30,000L-52,000L, supports the transportation of various gases (CO₂, LPG, LNG), can be customized and configured, and is suitable for industrial, energy and chemical logistics.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(units):15(days),2-3(units):30(days),>3(units):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
LUYI VEHICLE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

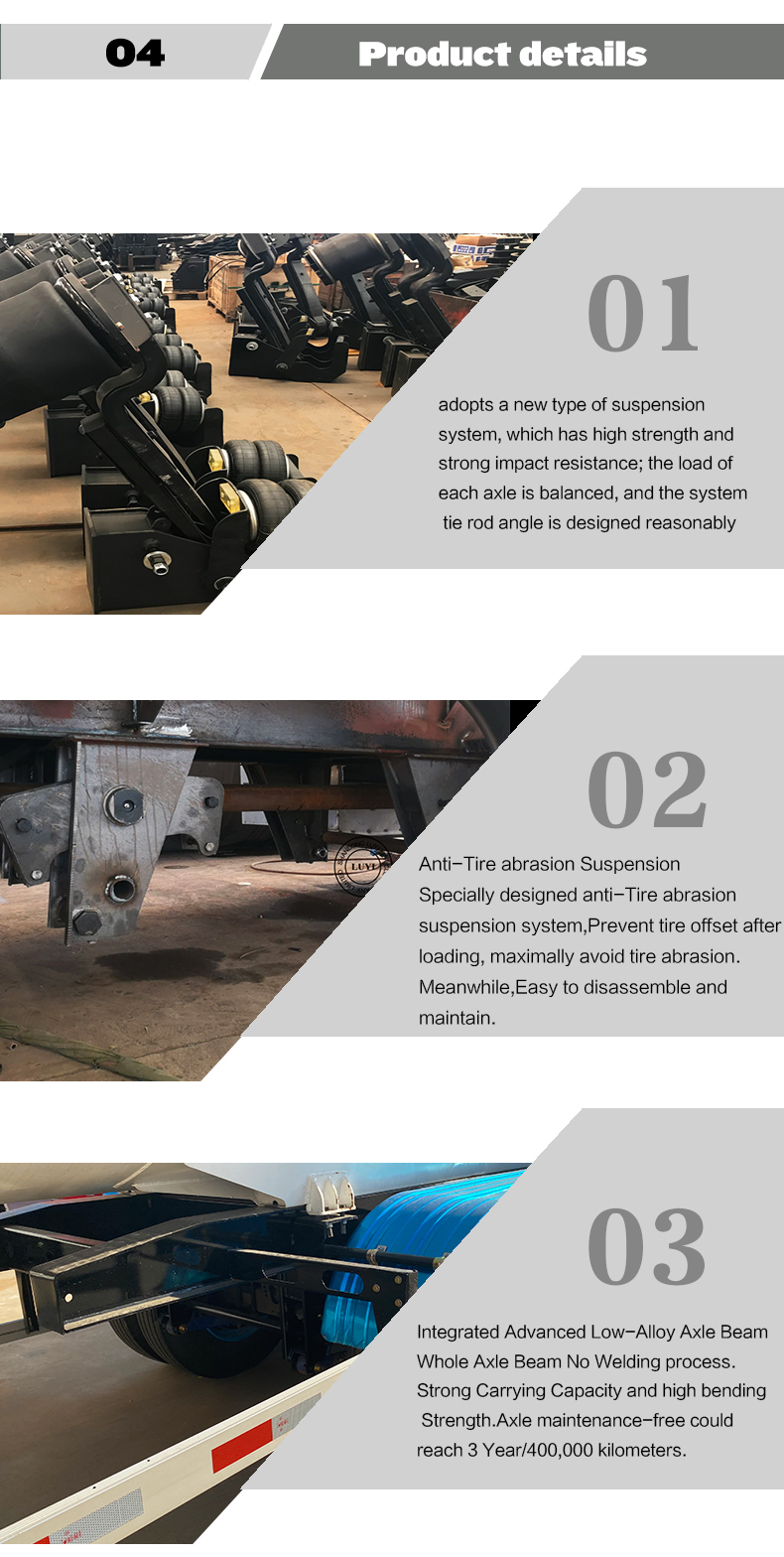

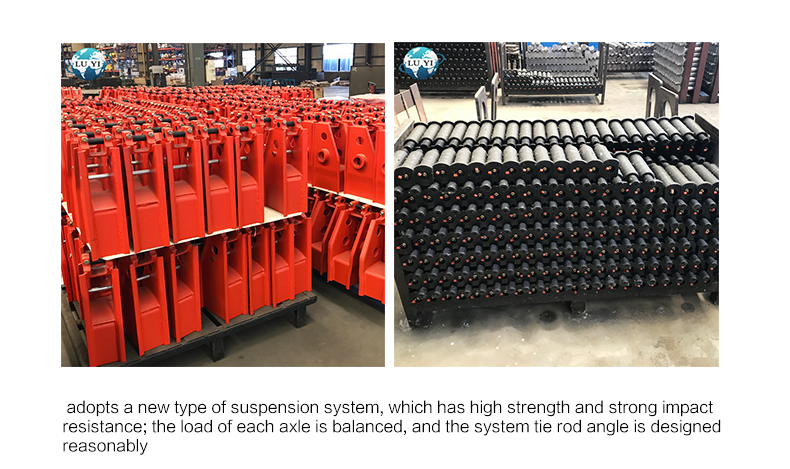

Suspension
Mechanical Suspension Air Suspension
Brake System
Dual Line Braking System
Axle
13 Ton Fuwa Brand
Tire
11.00r20 12r22.5 315 385
Product name
Fuel Tanker Trailer
Place of Origin
Shandong, China
Max Payload
70T
Size
10500*2500*3750mm
Material
Steel
Type
Semi-Trailer
Use
Truck Trailer
Usage
Fuel Transport
Certification
ADR DOT ISO CCC
Loading capacity
30T~ 60T
King pin
2"(50mm)or3.5"(90mm) JOST
Landing Gear
Standard 28Ton
Products Description:
LUYI VEHICLE Used to load LNG CO'2 lpg Liquid truck trailers GAS Lng tanker Semi Trailer

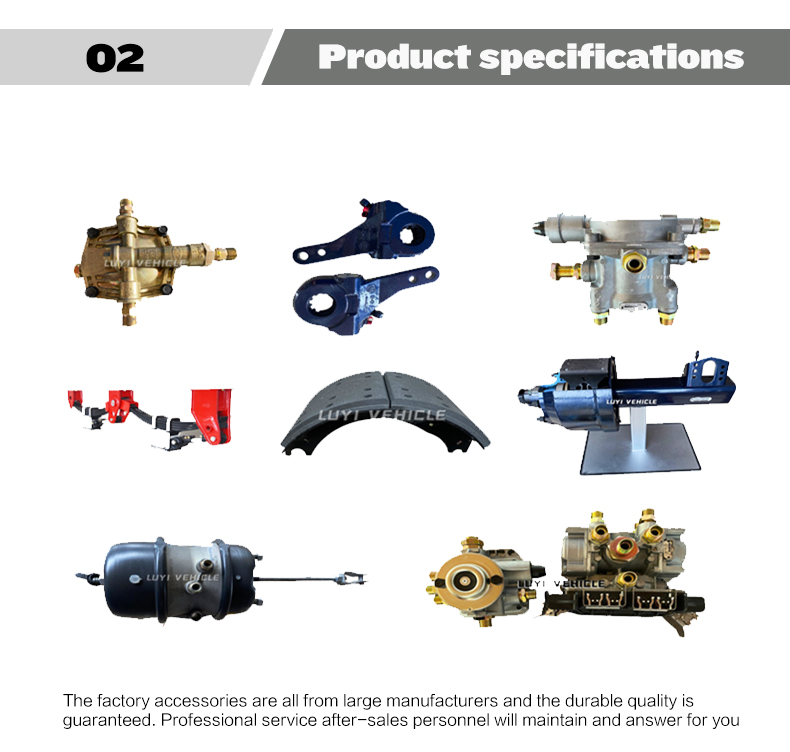

We also can produce the tanker trailers for different liquid like fuel, petrol, water,palm oil etc. To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens. LUYI tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Product Paramenters
Name | Luyi tanker semi trailer | |
Trailer Model | Round Shape or Ellipse | |
Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm | |
Tare weight | About 8-12.8T | |
Total Volume | 25m³-60m³ | |
Material | 1.Q235B/Q345B carbon steel 2.5XCT4aluminum5454 3.304 stainless steel | |
Tanker Body Material | 1. 6mm/5mm Q235B/Q345B carbon steel 2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel | |

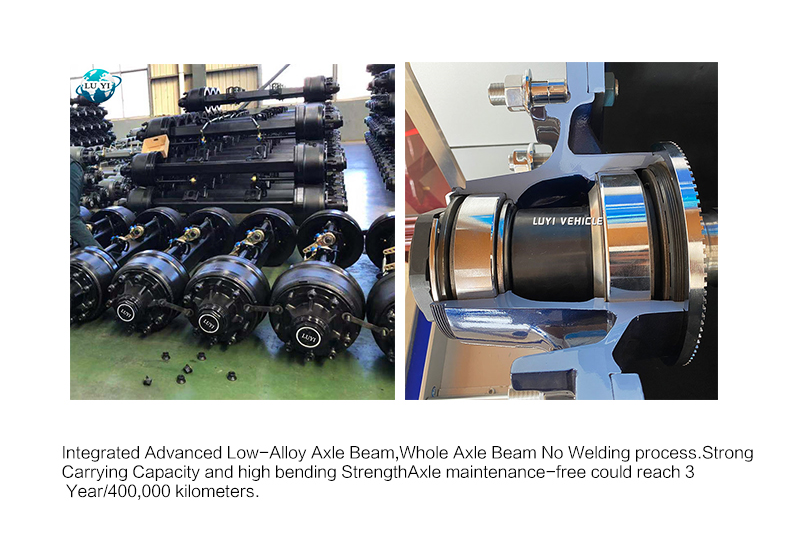

Axles | 13T/16T, FUWA/BPW/HuaJing brand | |
Axle Number | 2/3/4/ Axle or multi axle | |
Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . | |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) | |
King Pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | |
Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) | |
Rear ladder | Dismountable or foldaway | |
Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm | |
Spring leaf | 8/10/12/16 pieces | |
Manhole Cover | 2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards | |
Brake Chamber | 6 double brake chamber | |
Electrical System | 24V, 7core socket, lights according to European standards | |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher | |
Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) | |
Discharge mouth | diameter is 280mm | |
Receptacle | 7ways (7wire harness) | |
The Above Information is Standard Spec.If you want get more specific Spec.Please send inquity to us. | ||
Company Profile:

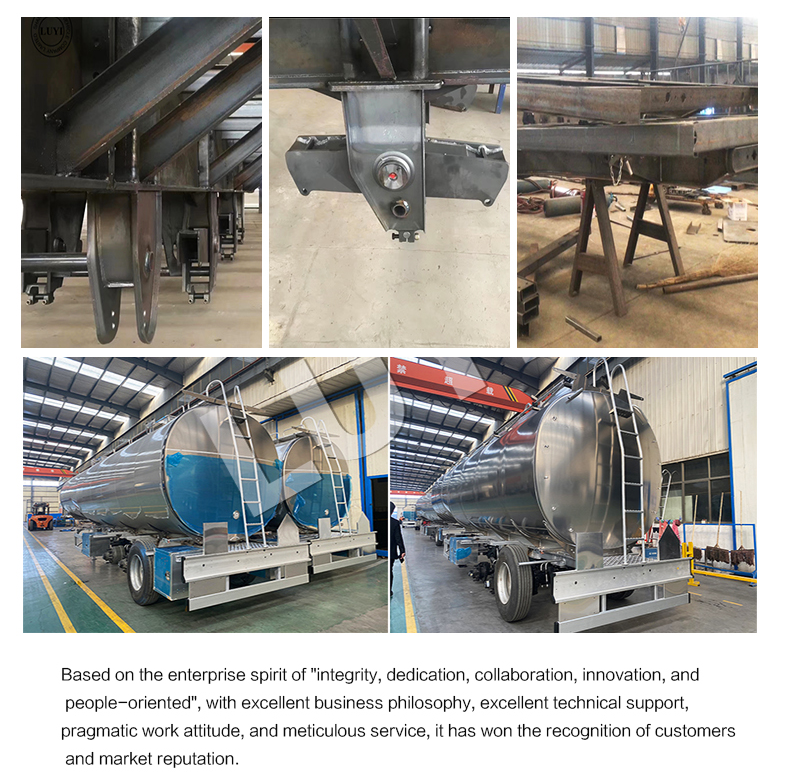

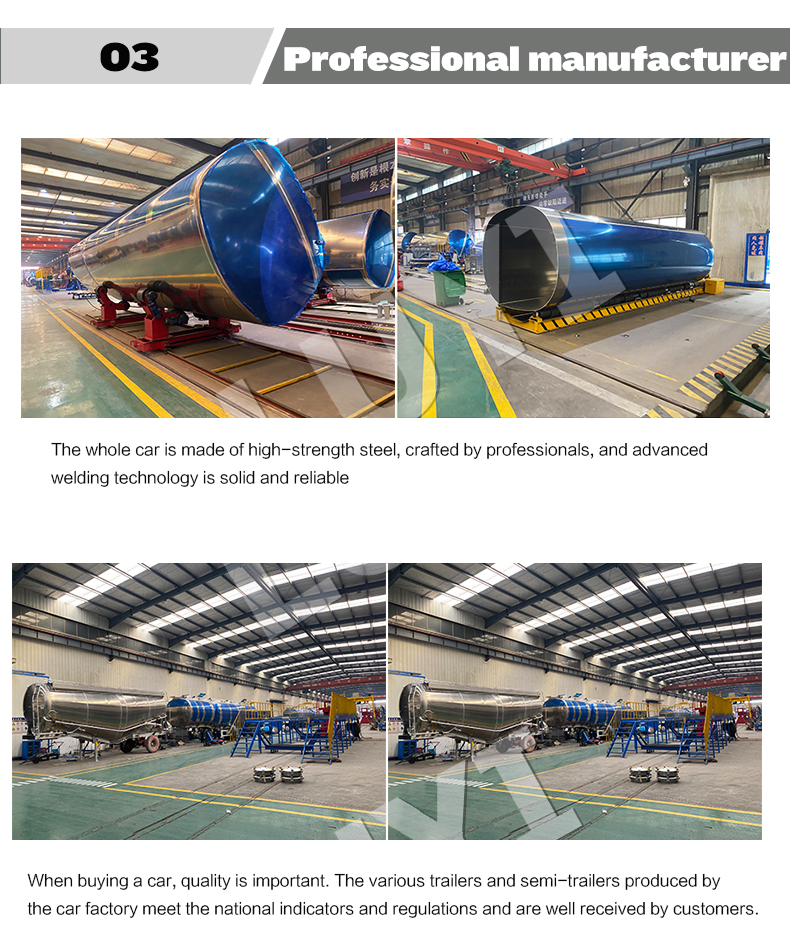

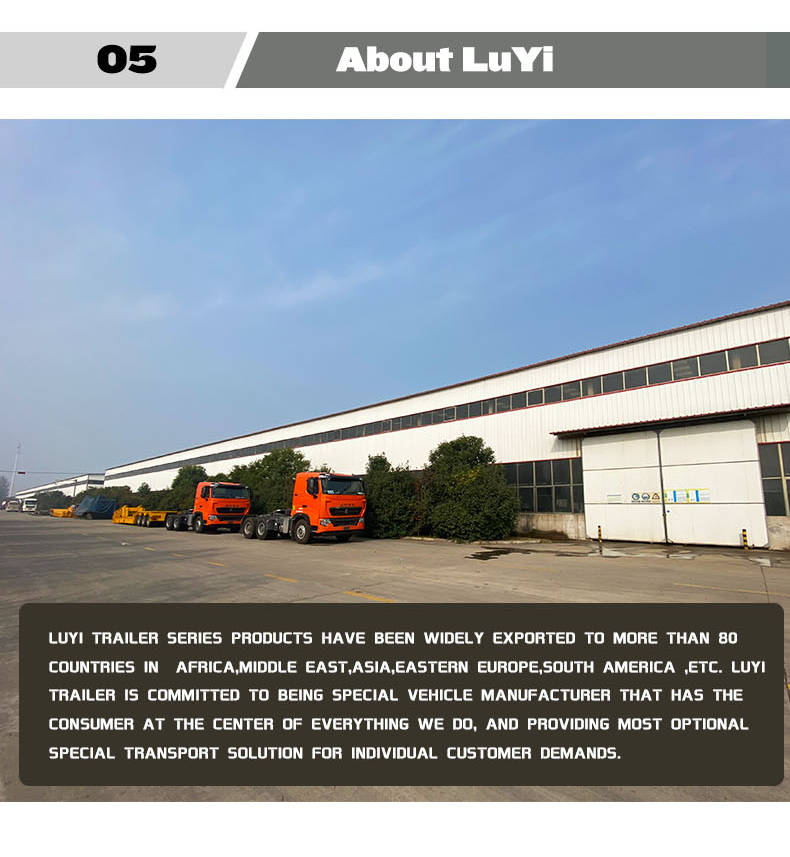

Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc. Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
